POWER ELECTRONICS
ACCESSORIES
289

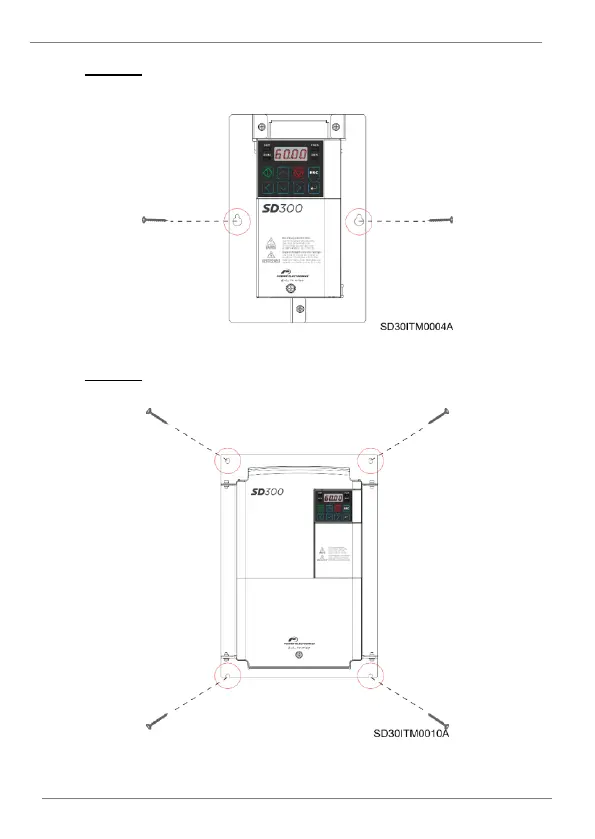

Example: Frame 1N drive + flange mounting: Use two M3 screws to fix
the drive to the wall/cabinet.
Drive + flange mounting. Frame 1N.
Example: Frame 5 drive + flange mounting: Use four M4 screws to fix
the drive to the wall/cabinet.
Drive + flange mounting. Frame 5
