POWER ELECTRONICS

SD300

COMMONLY USED CONFIGURATIONS

303

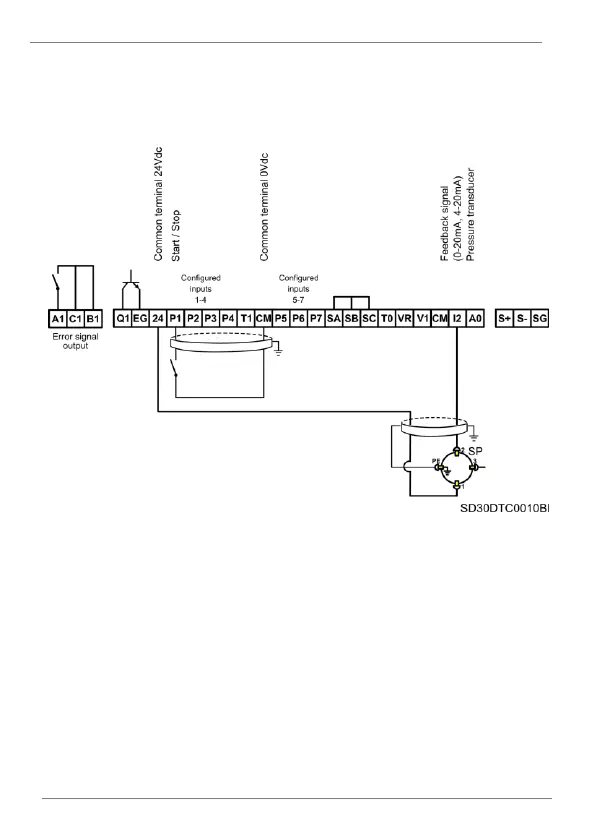

Connection scheme

Terminals CM/P1: Start command (NO state).

Constant pressure control and automatic stop at zero level flow. Pressure

command is set by keypad

Note: For two-wire pressure transducers, connect 1 to pin 24 and 2 to pin
