Power Electronics SD300 Series - Page 34

SD300
POWER ELECTRONICS
32
DIMENSIONS

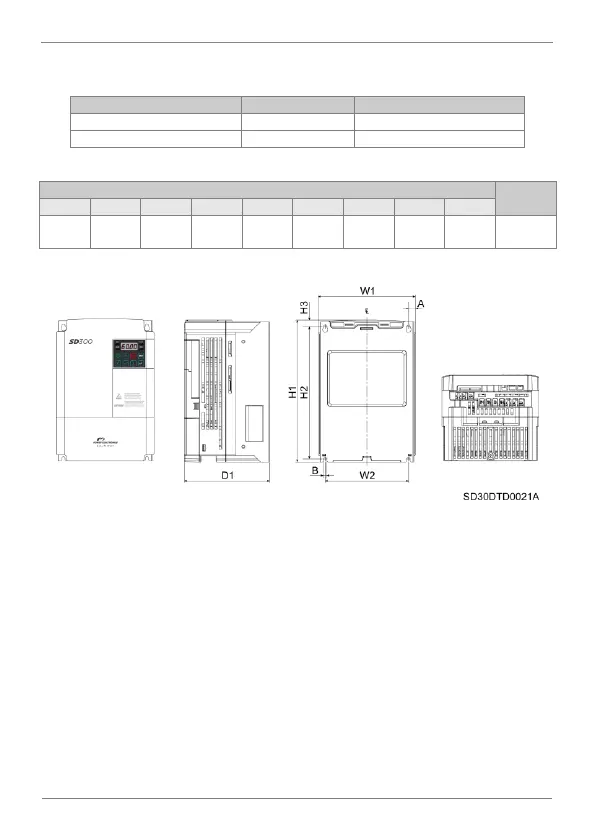

Frame 4 Dimensions
INPUT VOLTAGE
PHASES
EQUIPMENT
200~240[V]
3
SD303022, SD304022
380~480[V]
3
SD301642F, SD302342F
DIMENSIONS [mm/inch]
WEIGHT
(kg/lb)
W1
W2
H1
H2
H3
D1
A
B
Ø
160
(6.3”)
137
(5.4”)
232
(9.1”)
216.5
(8.5’’)
10.5
(0.4”)
140
(5.5”)
5 (0.2”)
5 (0.2”)
-
3.3
(7.3lb)
Frame 4 dimensions
