DIMENSIONS
31
Frame 3F Dimensions
INPUT VOLTAGE
PHASES
EQUIPMENT
200~240[V]
1
SD301212F
380~480[V]
3
SD301042F
DIMENSIONS [mm/inch]
WEIGHT
(kg/lb)
W1
W2
H1
H2
H3
D1
A
B
Ø
140
(5.5”)
132
(5.2”)
180
(7.1”)
170
(6.7”)
5 (0.2”)
140
(5.5”)
4 (0.2”)
4 (0.2”)
4.2
(0.2”)
2.2 (4.9lb)

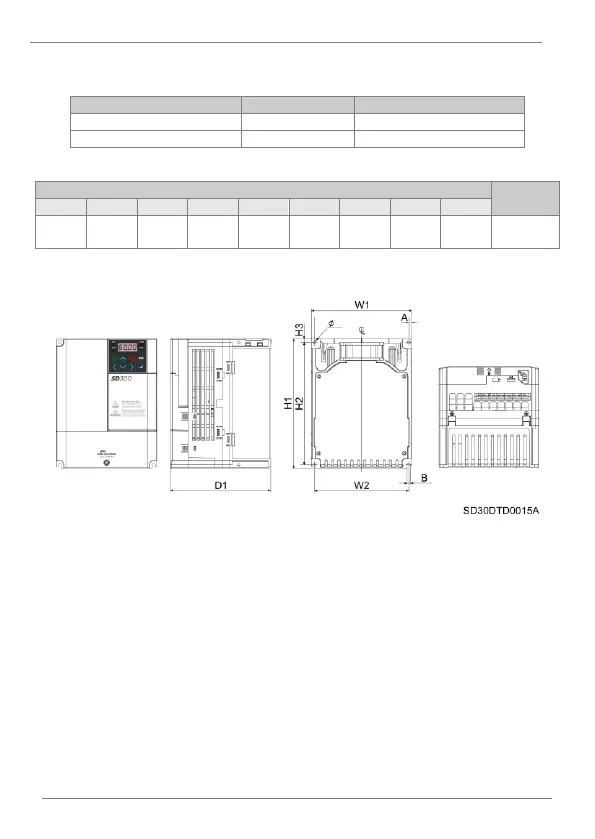

Frame 3F dimensions
