SD300
POWER ELECTRONICS
30
DIMENSIONS
Frame 2F Dimensions
INPUT VOLTAGE
PHASES
EQUIPMENT
200~240[V]
1
SD300612F, SD300912F
380~480[V]
3
SD300542F, SD300742F
DIMENSIONS [mm/inch]
WEIGHT
(kg/lb)
W1
W2
H1
H2
H3
D1
A
B
Ø
100
(3.9”)
91
(3.6”)
180
(7.1”)
170
(6.7”)
5 (0.2”)
140
(5.5”)
4.5
(0.2”)
4.5
(0.2”)
4.2
(0.2”)
1.8 (4lb)

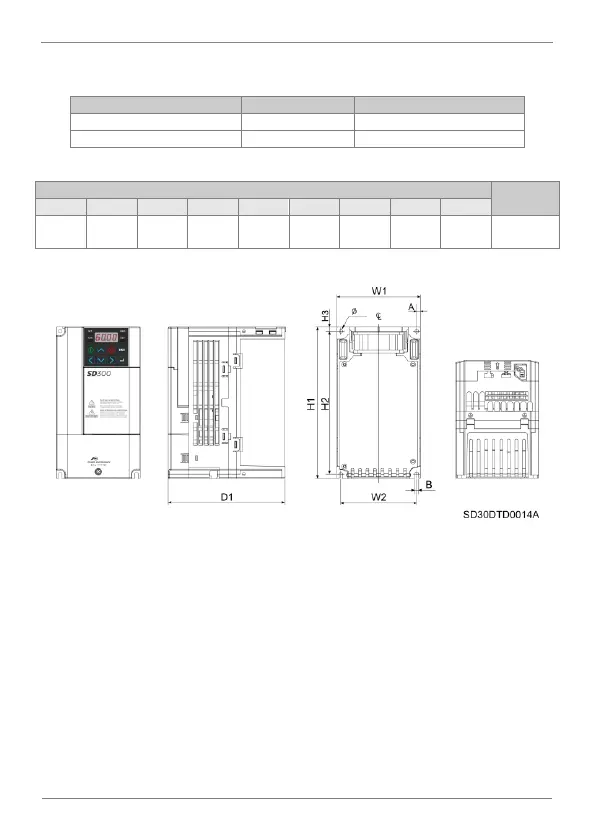

Frame 2F dimensions
