DIMENSIONS
29
Frame 1F Dimensions
INPUT VOLTAGE
PHASES
EQUIPMENT
200~240[V]
1
SD300312F
380~480[V]
3
SD300242F, SD300342F
DIMENSIONS [mm/inch]
WEIGHT
(kg/lb)
W1
W2
H1
H2
H3
D1
A
B
Ø
68
(2.7”)
59
(2.3“)
180(7.1
“)
170.5
(6.7”)
5 (0.2”)
130
(5.1”)
4.5
(0.2”)
4.5
(0.2”)
4.2
(0.2”)
1.2 (2.6lb)

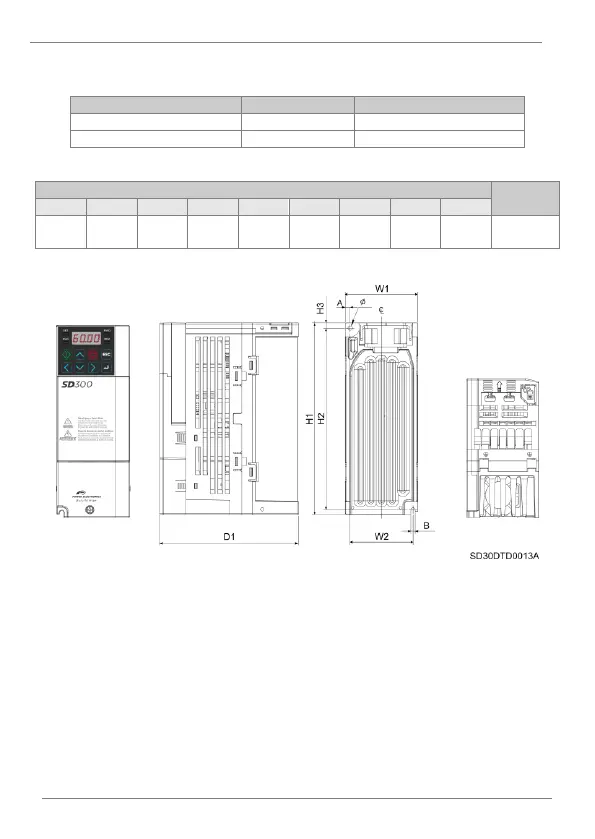

Frame 1F dimensions
