PowerMax 500 Bearclaw - Page 18

18

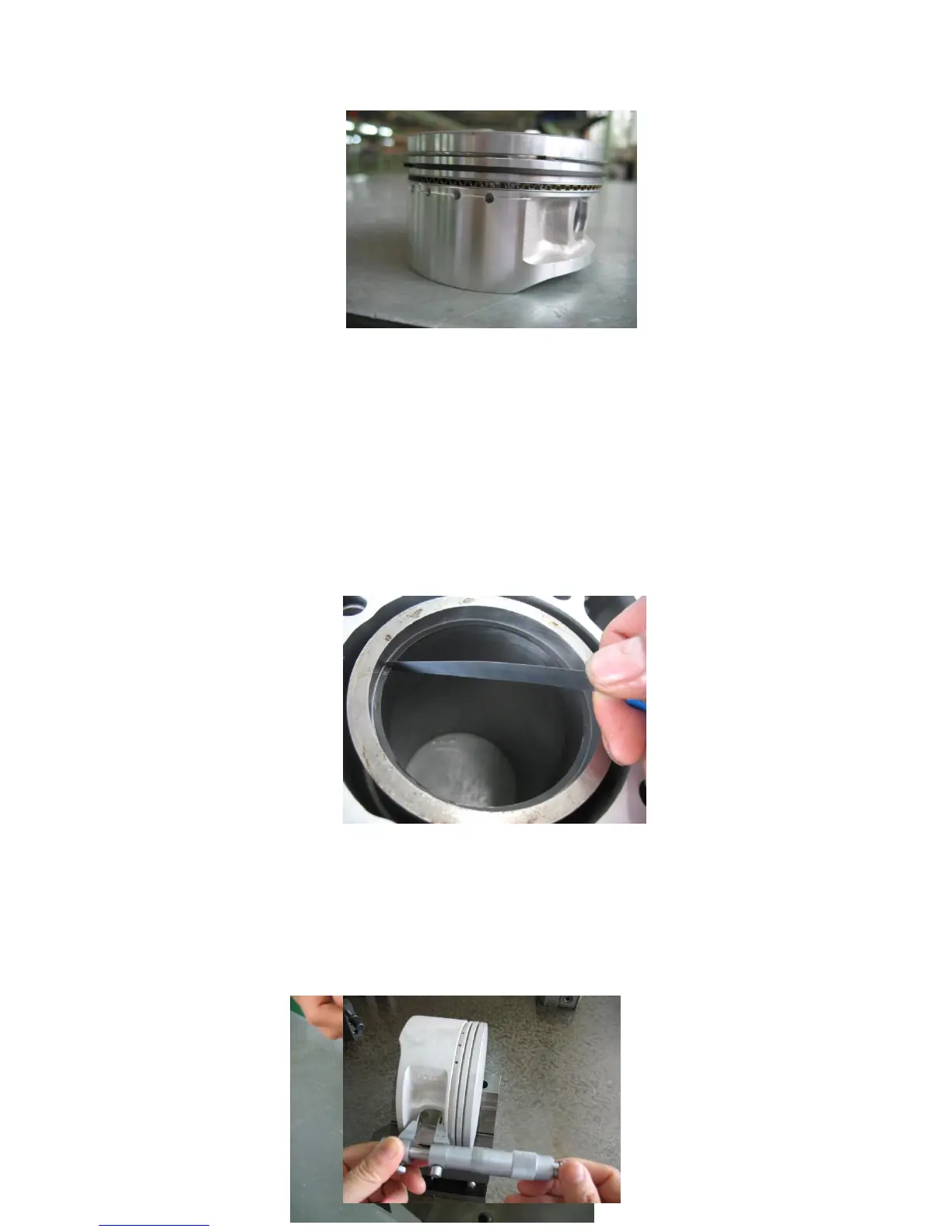

Figure 2-9
：0.5mm。
Insert piston ring into cylinder, and measure the end gap.
Repairing limit value: the first ring/the second ring: 0.5mm
See figure 2-10.
Figure 2-10
Measure the bore diameter of piston pin hole.
Repairing limit value: see figure 2-11.
