Figure 2-16

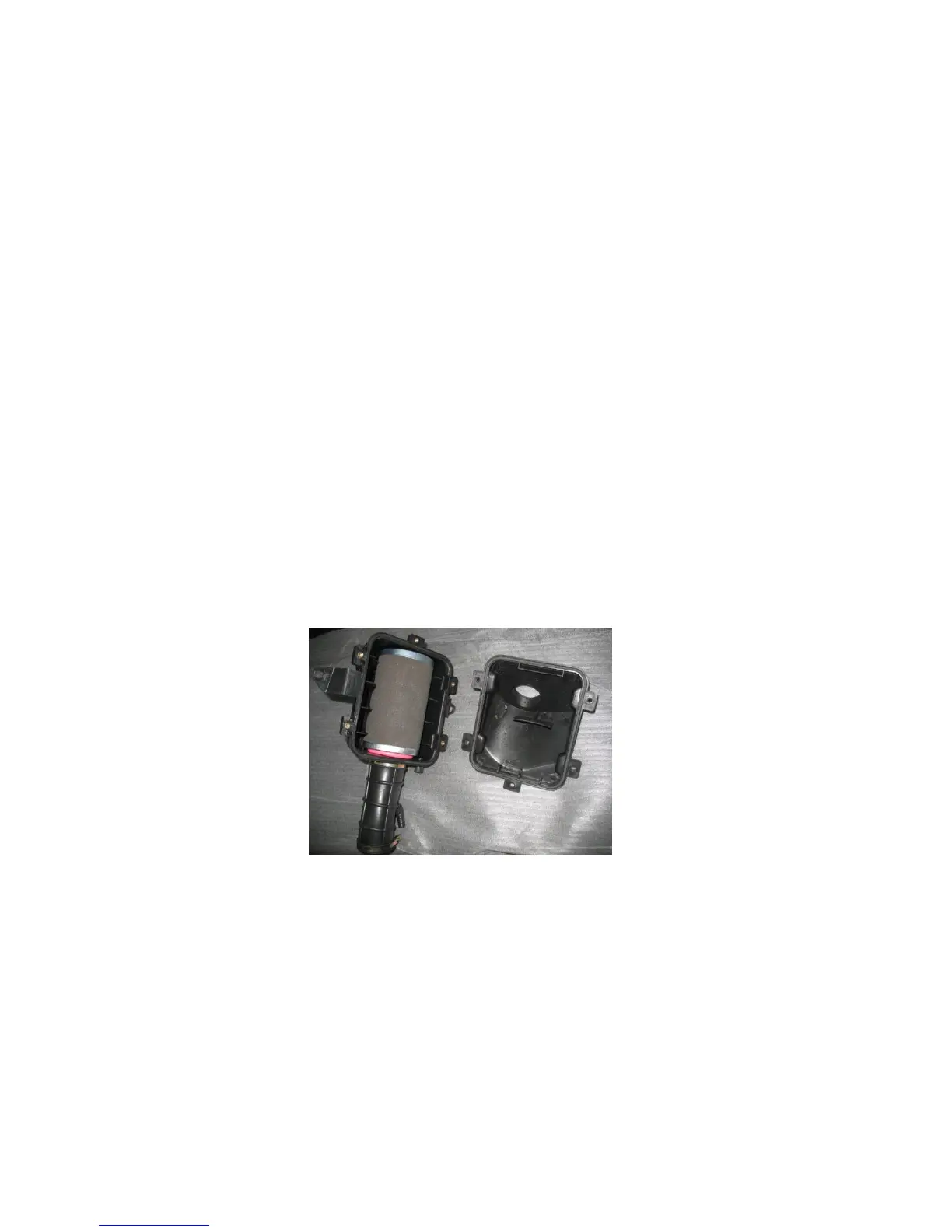

2.1.7 Inspection of air cleaner
1、Disassemble the air cleaner, remove filter element, clean
the filter element with non-flammable cleaning solvent, and
then make it dry.
Note: Petrol is forbidden.
2. Dip the air filter element into 20# oil, then take it
out and squeeze the excessive oil, assemble it orderly.
Impermeability is necessary. See figure 2-17.
Figure 2-17
2．1．8 Inspection of oil clarifier
Cleaning of lubricator oil strainer: remove clarifier (Figure
2-18-1), clean it to ensure a well work- condition. Then fix
it up.
