PowerMax 500 Bearclaw - Inspection of Steering Vertical Column Components

52
Figure 4-1-6
1) Tension rod
2) front right Yanggakdo
3)cotter pin 3.2*32
4) Hexagon open-groove nut M10
7. Pull out the components of
The steering vertical column
From the bottom seat.
(Figure 4-1-7)

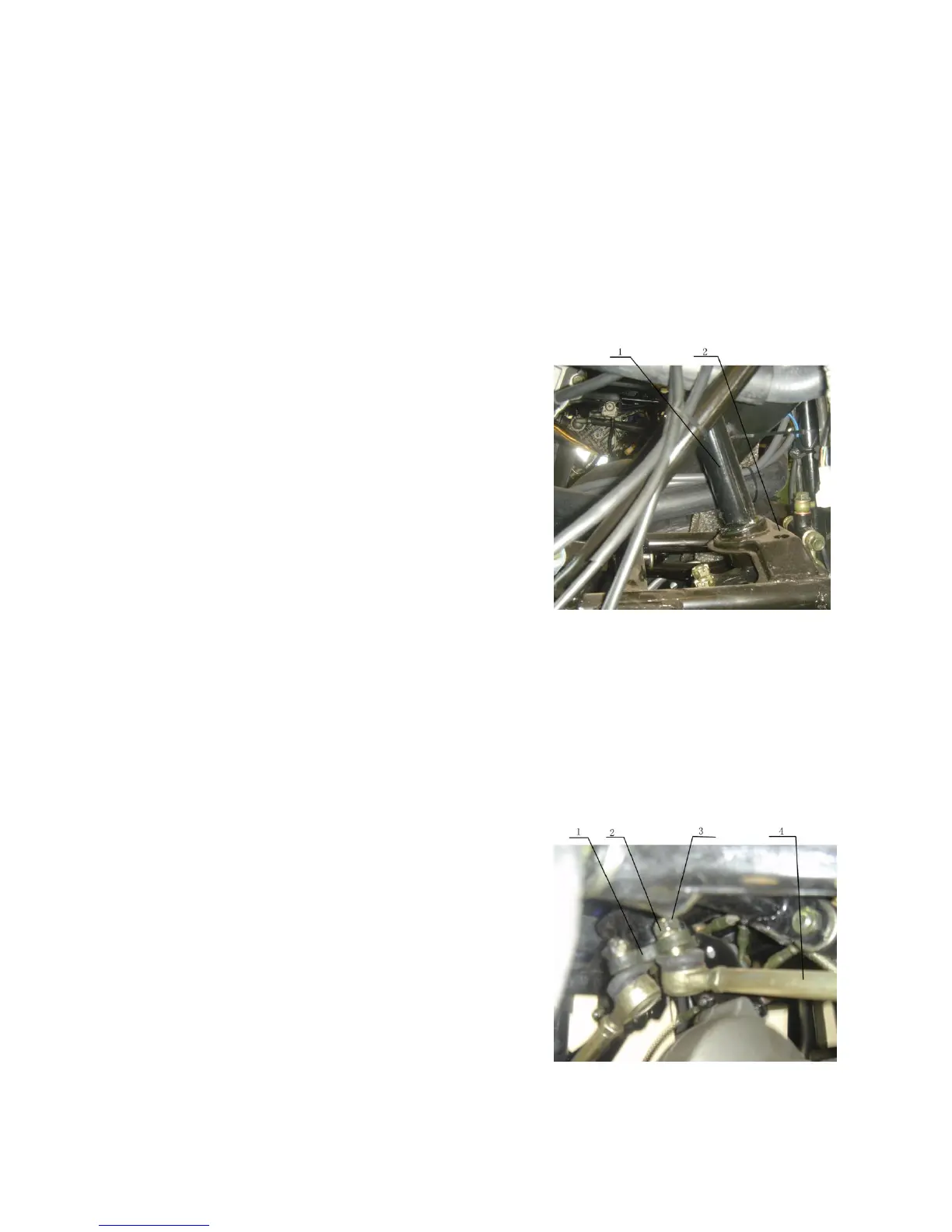

Figure 4-1-7
1、 Steering Vertical Column
2、 Bottom Seat
4.1.1.2 Inspection of steering vertical column components:
1. Check whether the nut between
the inner ball pin of tension
rod and the Turning rocker arm
is tightened. (Figure 4-1-8)
In case of loosen or worn out,
tighten it with proper tools or
replace with identical nuts. Figure 4-1-8
