PowerMax 500 Bearclaw - Remove the Rear; Inspection of Rear Brake System

72
Of Rear Disk Brake Plate
From the Rear Bridge.

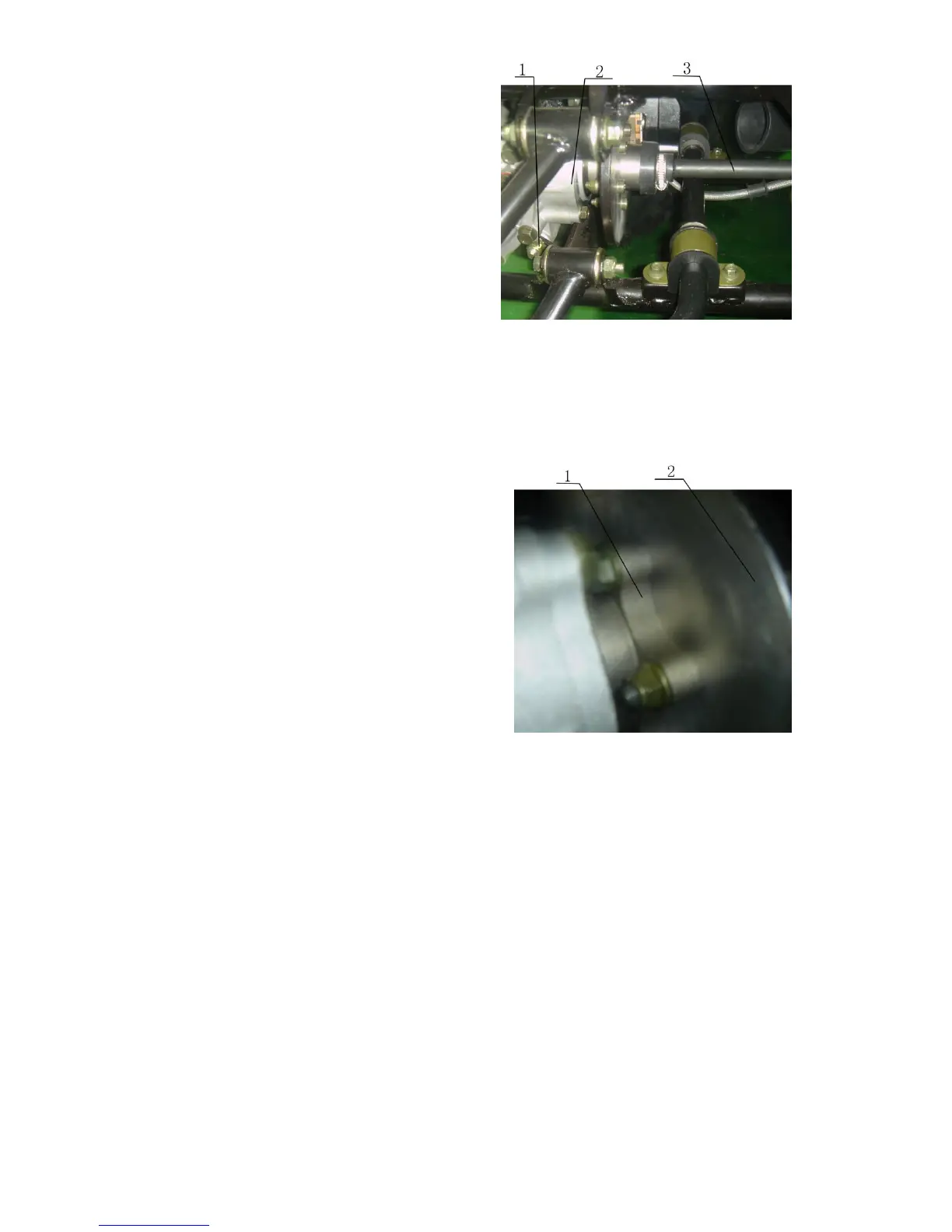

(Figure 4-2-14)
Figure 4-2-14
1) Hexagon flange bolt M10×115
2) Rear transmission case
3) Rear central transmission shafts
3. Remove the Rear
Disk Brake Plate from
Bottom Seat see
Figure 4-2-15
Figure 4-2-15
1).Bottom Seat of Rear Disk Brake Plate
2) Rear Disk Brake Plate
4.2.2.5 Inspection of Rear Brake System:
1、Check the Brake Fluid Box for crack, leakage and other
potential defects.
2、Check Fastening Bolts of all Fuel Pipes for possible
looseness or damage.
