PowerMax 500 Bearclaw - Extreme Position; Measure the External Diameter of Piston Pin

19

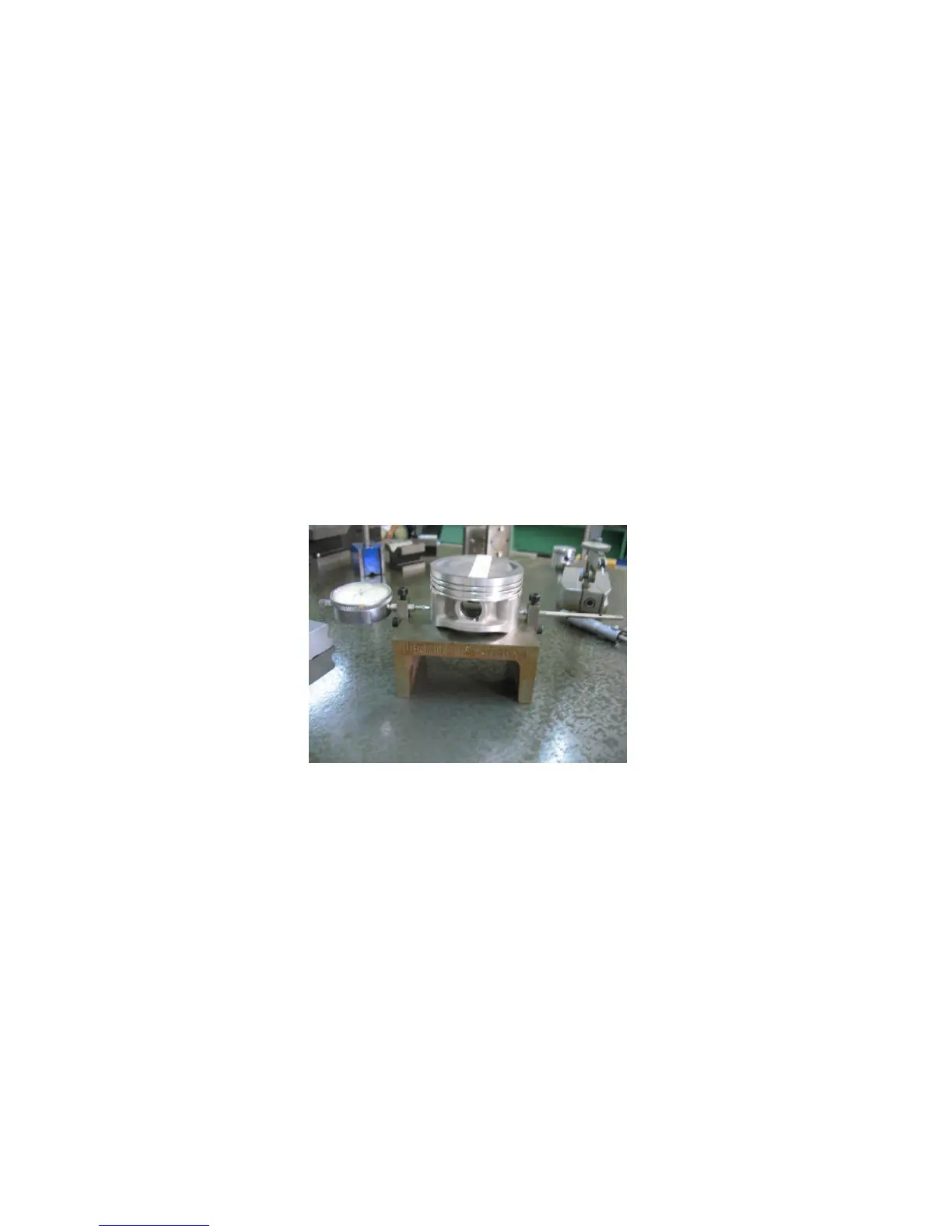

Figure 2-11
Measure the external diameter 10mm above the bottom of the
piston skirt.
Extreme position: the gap between cylinder and piston
Repairing limit value: 0.1mm
See figure 2-12.
1、
Figure 2-12
7． Measure the external diameter of piston pin:
The gap between piston and piston pin:
0.02mm
Repairing limit value: 0.02mm .See figure 2-13.
