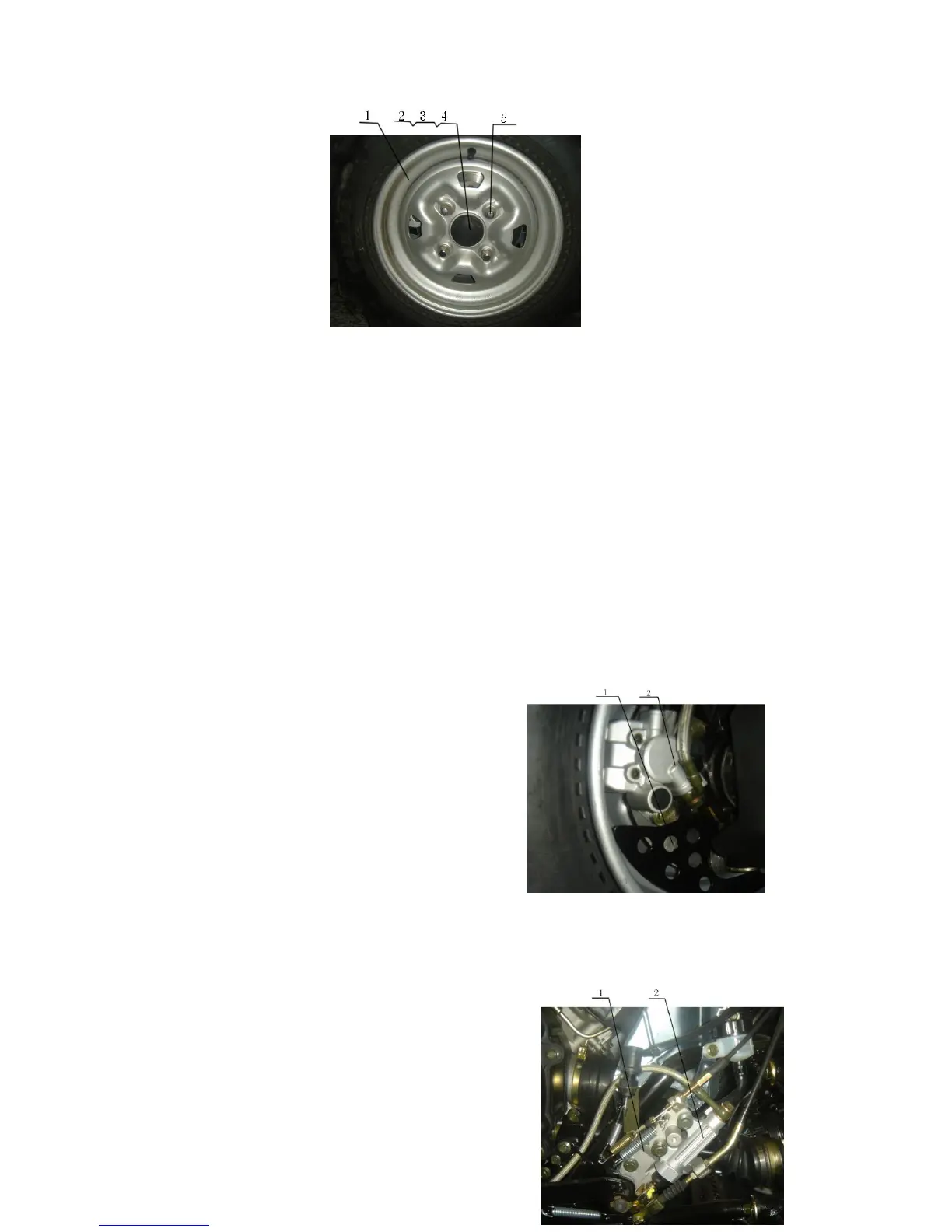

Figure 4-2-4
1) Front wheel hub
2) Hexagon open-groove nut M30
3) Cotter pin 3.2*32
4) Cushion
5) Taper nut M10
2. Sequently remove the cotter pins, open-groove nuts,
cushion and front wheel hub from the front wheel shaft.
(Figure 4-2-4)
3. Remove the disk brake
Plate from the front wheel
Hub. (Figure 4-2-5)
Figure 4-2-5
1) Disk brake plate
2) Front brake plate clip
4.2.1.3 Disassembly of the Front Disk Brake system:
1. Remove the bottom seat
Of Disk Brake Pump and
