1、rear bridge transmission case assembly 2、the left case 3、needle bearing 22BM3010 4、
needle bearing 55BM6720A
5、cluster gear of rear bridge 6、needle bearing 7、rear disk brake seat 8、φXφ
oil seal 9、clamp sheath
10、0-ring of rear drive gear 11、cushionφ12 12、nutM12X1.25 13、rear drive gear
seat
14、rear adjuster cushionⅠ 15、rear adjuster cushionⅡ 16、oiling plug 17、0-rings of grease
hole 18、hex bolt M8X35 19、cushionφ8 20、hex bolt M8X25 21、cushionφ8 22、zinc-base
alloy oil cap 23、case cover of rear bridge 24、inner hex bolt M8X45 25、cooper gasket
φ8 26、flange nut M8 27、hexagon flange bolt M8X12 28、cooper gasketφ8 29、φ90X
φ65 oil seal
30、deep-groove ball bearing 16017 31、0-rings of rear bridge cover 32、rear adjuster washer
Ⅲ 33、hexagon flange bolt M10X25
34、rear bridge oil-change plug M14X15 35. Copper gasketφ14 36. Weak spring of rear bridge
transmission shaft 37. Rear bridge transmission shaft 38. External clipφ18
39. Sheath of rear bridge transmission shaft 40. External clip φ 18 φ 18 41.clip 42. For
dust-proof cover of rear bridge transmission shaft
43. Rear dust-proof cover of rear bridge transmission shaft 44. Bypass line
The maintenance of Rear Bridge is identical to the fore bridge.
Please refer to the preceding contents.

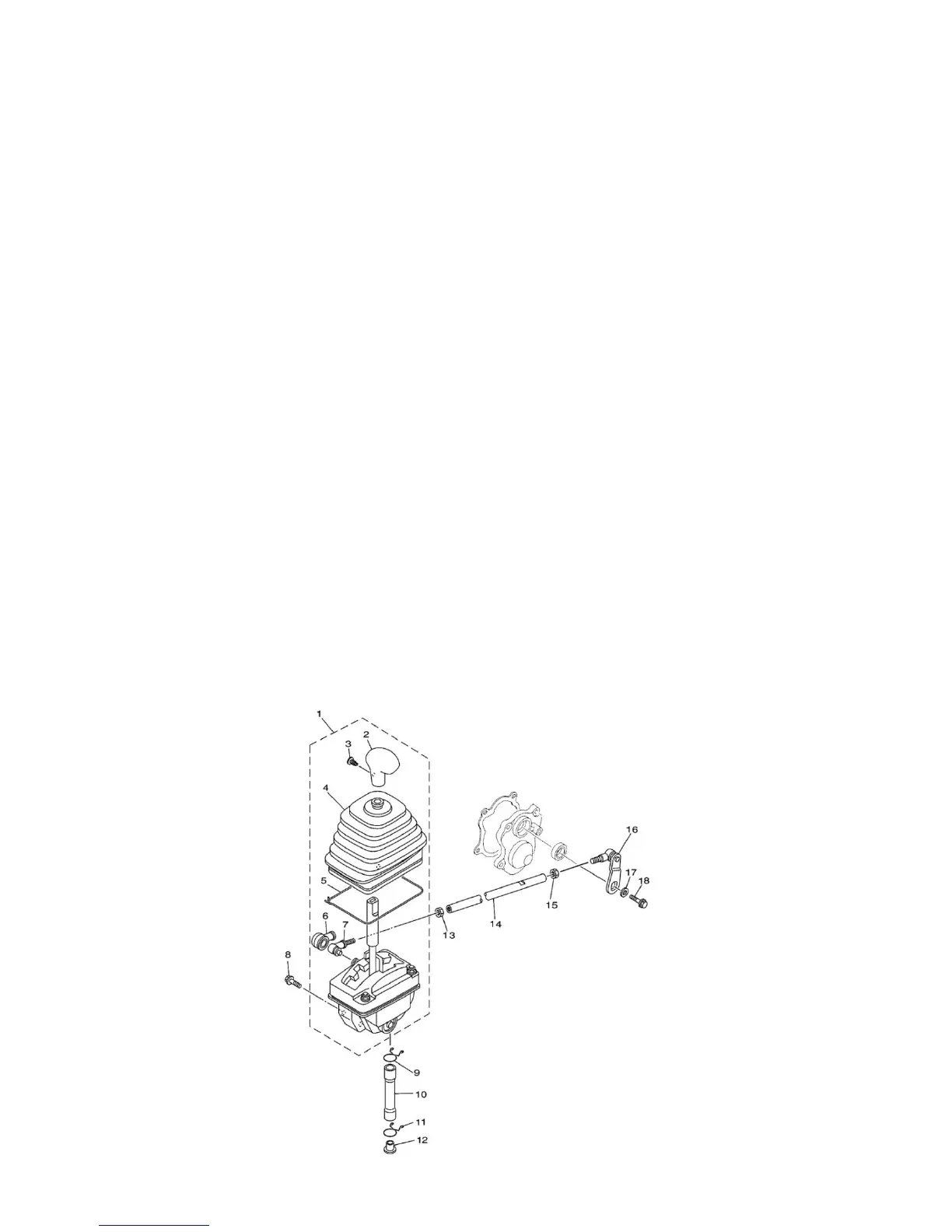

4.5 gear shift mechanism
