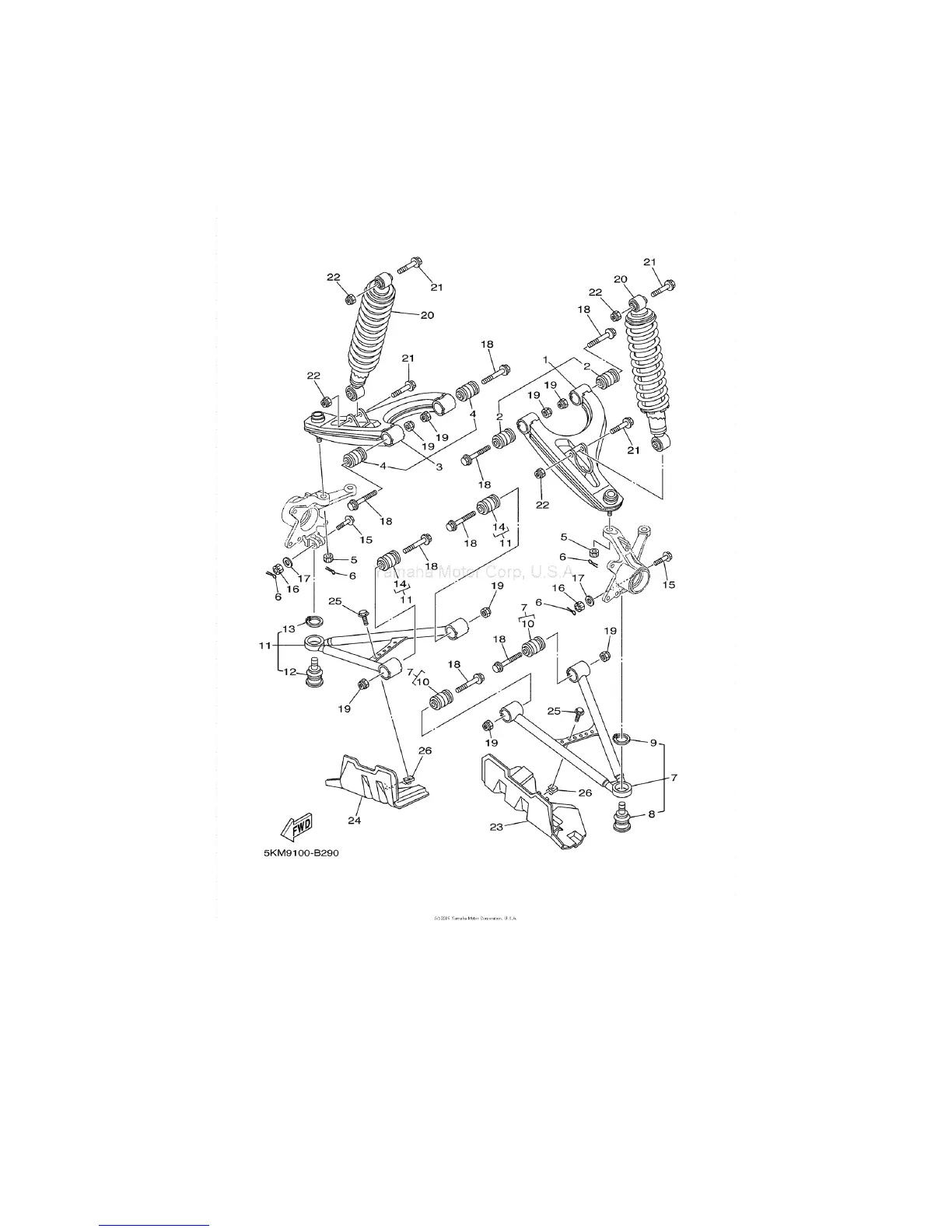

4.6.3. Front Suspension
1、fore upper-left rocker arm 2、middle spacer sleeve of fore L/R rocker arm
3、fore upper-right rocker arm assembly 4、middle spacer sleeve of rocker arm
5、open-groove nut M10 6、cotter pin 3.2×32 7、fore bottom-left rocker arm
assembly 8、fore bottom velocity joint assembly
9、stopper elastic ring for shaft 10、middle spacer sleeve of fore L/R rocker
arm 11、fore bottom-right rocker arm 12、fore bottom velocity joint assembly
