PowerMax 500 Bearclaw - Remove Pull-Out Hand Start Assembly

35

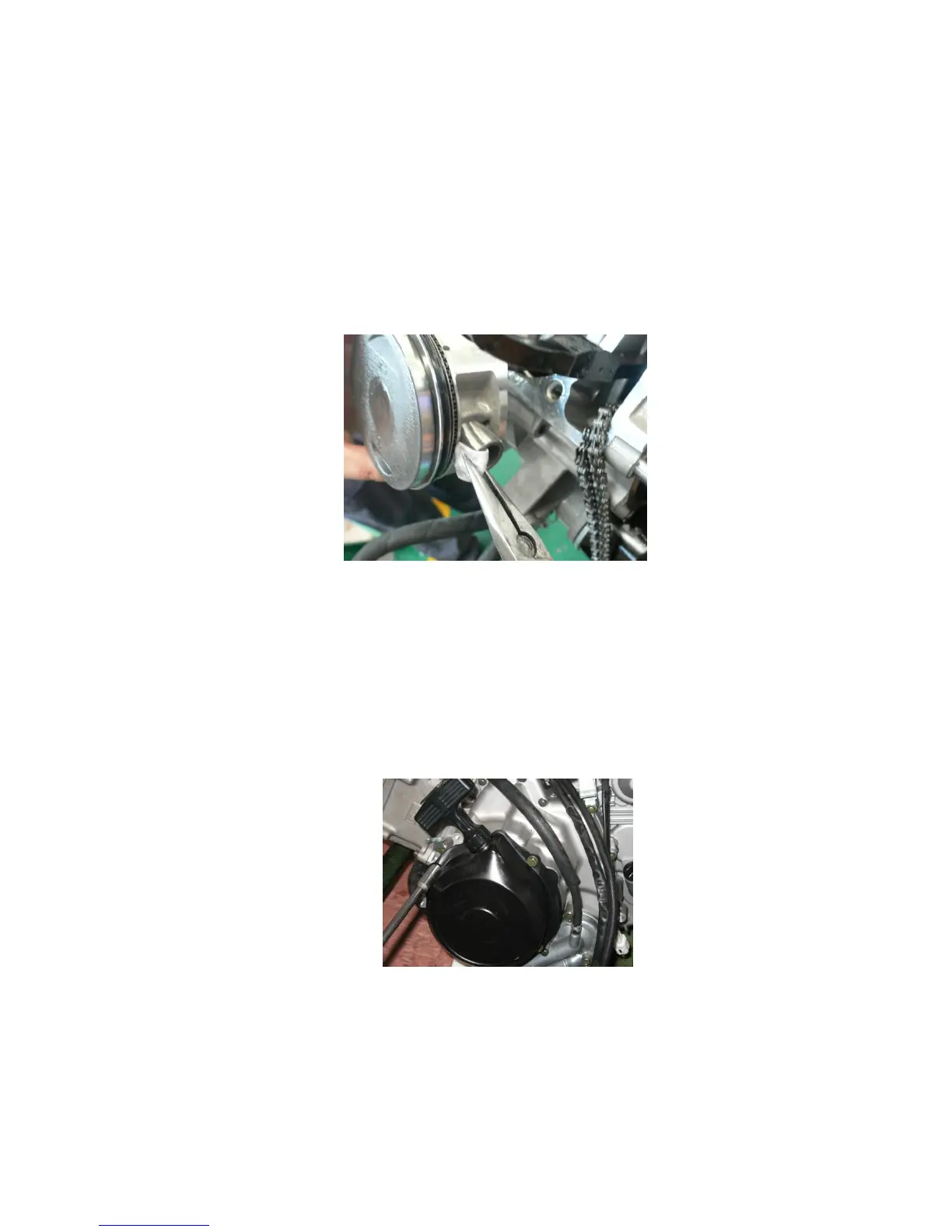

Clean the buckle of piston and piston pin hole to facilitate
the removing of piston pin.
Note: it is forbidden to knock the piston pin with
a hammer. See figure 2-37.
Figure 2-37
3.1.3 Remove pull-out hand start assembly
See figure 2-38.
Figure 2-38
