PowerMax 500 Bearclaw - Inspection of Rocker Arm; Inspection of Rocker Arm Shaft

28
Figure 2-2
Inspection of rocker arm
Check whether the rocker arm is worn out, or damaged and
whether the oil hole is blocked.
Note: If there is a rocker arm to be replaced, examine
the peak of cam

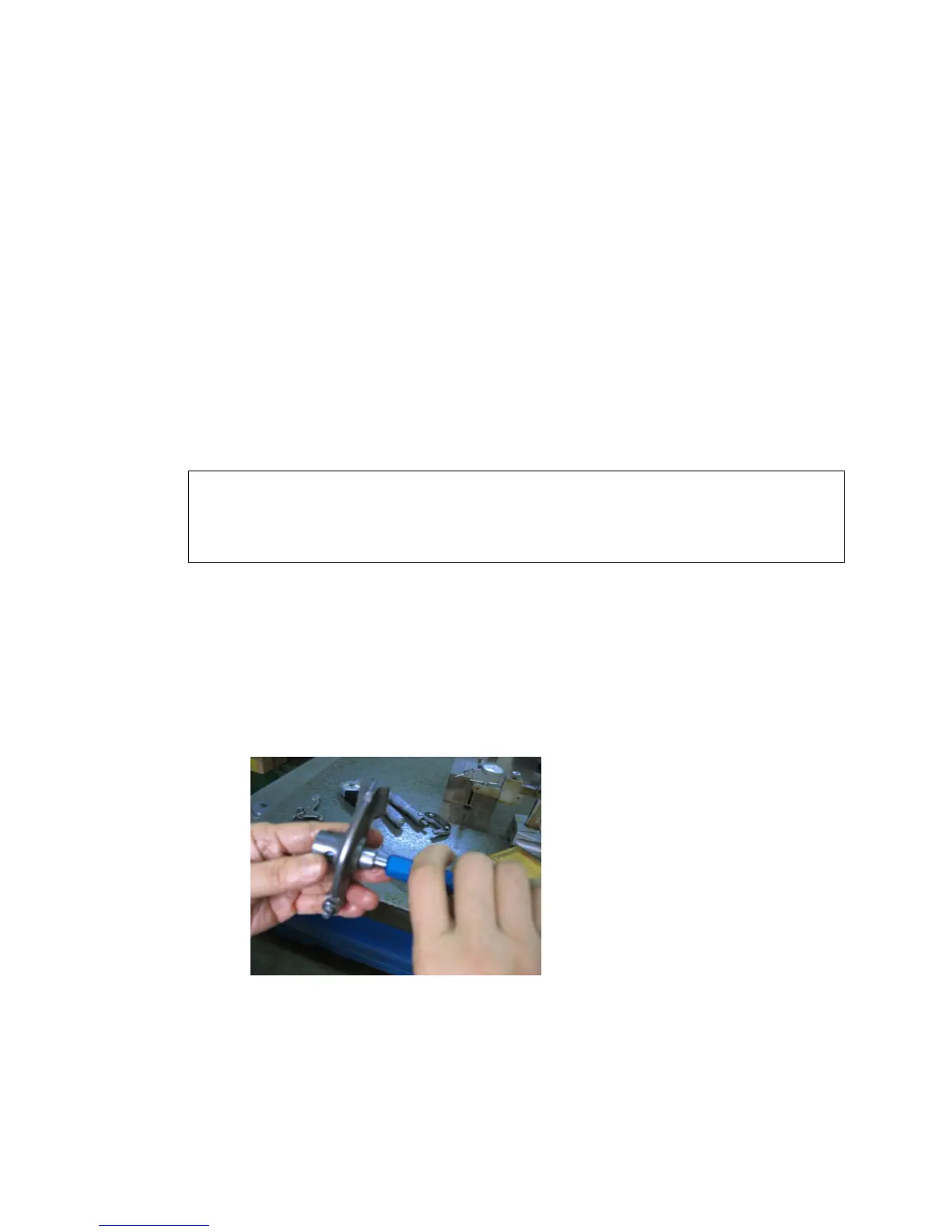

Measure the bore diameter of rocker arm
φ12 +0.038mm +0.020mm
Repairing limit value: φ12 +0.038mm +0.020mm .See figure 2-25
Figure 2-25
7． Inspection of rocker arm shaft.
Examine if the rocker arm if worn out or cracked.
