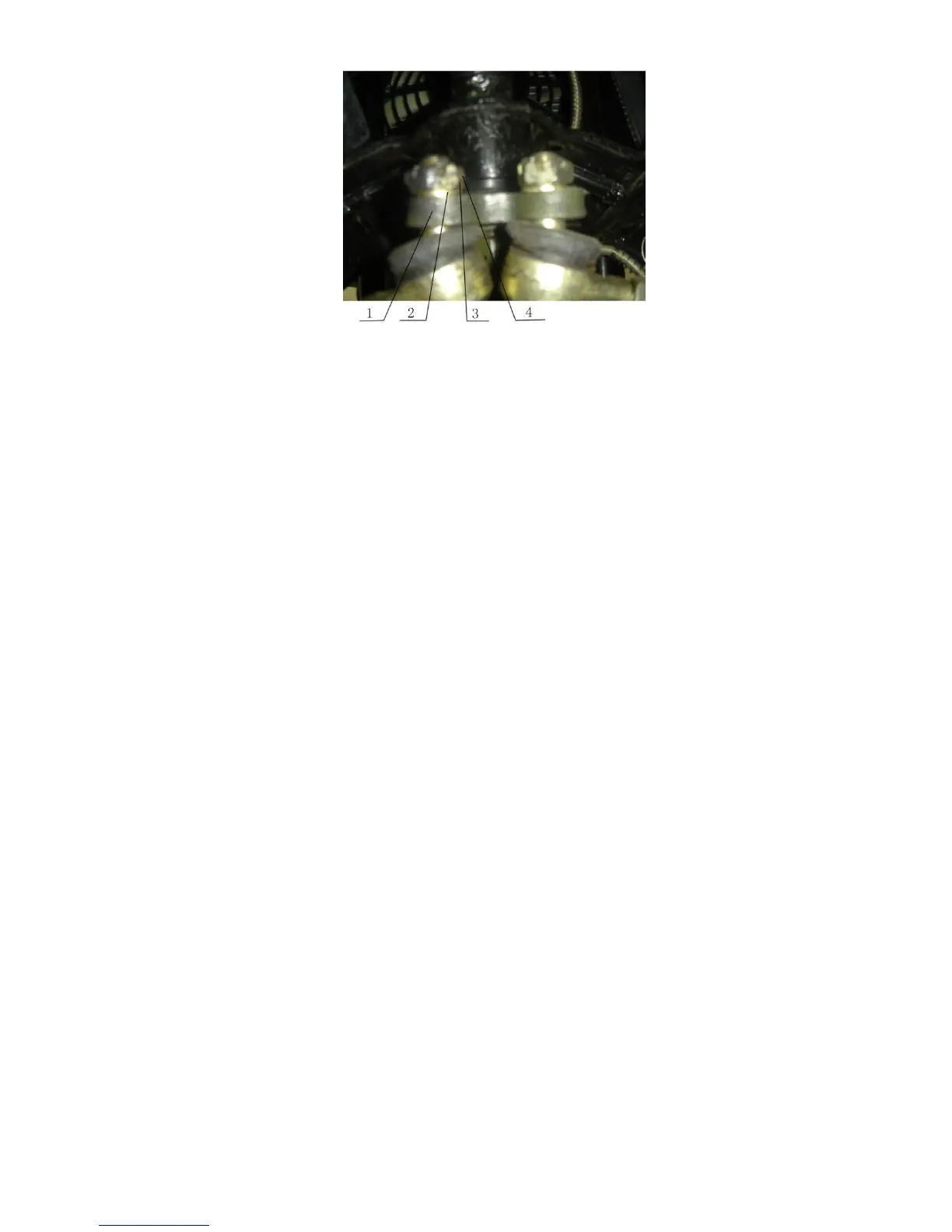

Figure 4-1-11
1) Turning rocker arms comp
2) Cushion ф10
3) Hexagon open-groove nut M12
4) Cotter pin 3.2×32
4.1.2 Disassembly, inspection and assembly of steering bar
4.1.2.1 Disassembly of steering bar
1. Remove all of the Plastic cover and Plastic
ornaments on Steering Bar (Figure 4-1-1)
2. Remove steering bar clip（附图4-1-2）
3. Unplug all cables and wires and remove the steering
bar (Figure 4-1-3)
4.1.2.2 Inspection of steering bar
1. Check any existing or potential crack on the steering
bar. In case of above defects, the steering bar must
be replaced (Figure 4-1-12)
To Next Page
