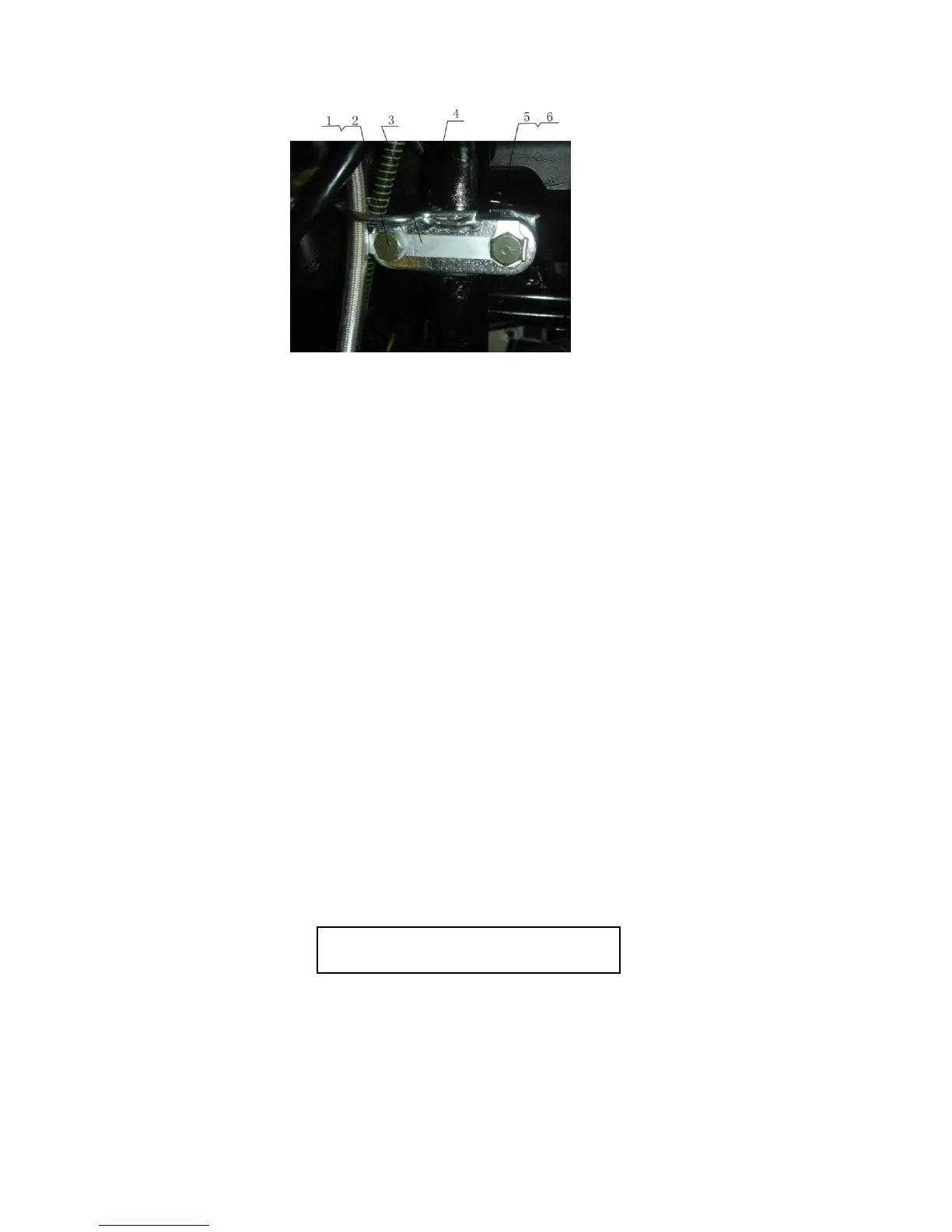

Figure 4-1-10
1) 、 hexagon flange bolt M8*6
2) 、Inner and outer supporting bracket
3) 、stop reverse piece
4) 、Supporting stent
5) 、Supporting Collar Sheath
6) 、Supporting Ferrell
4. Fix the tension rod into the conical bore of the
steering vertical column with tension rod components
(2sets), cushion ф12 (2pcs), M10 hexagon open-groove
nuts (2pcs) and cotter pins 3.2×32 (2pcs). Figure
4-1-11
Fastening Torque: 28N.m
