seals must be greased with lithium
lubrication.

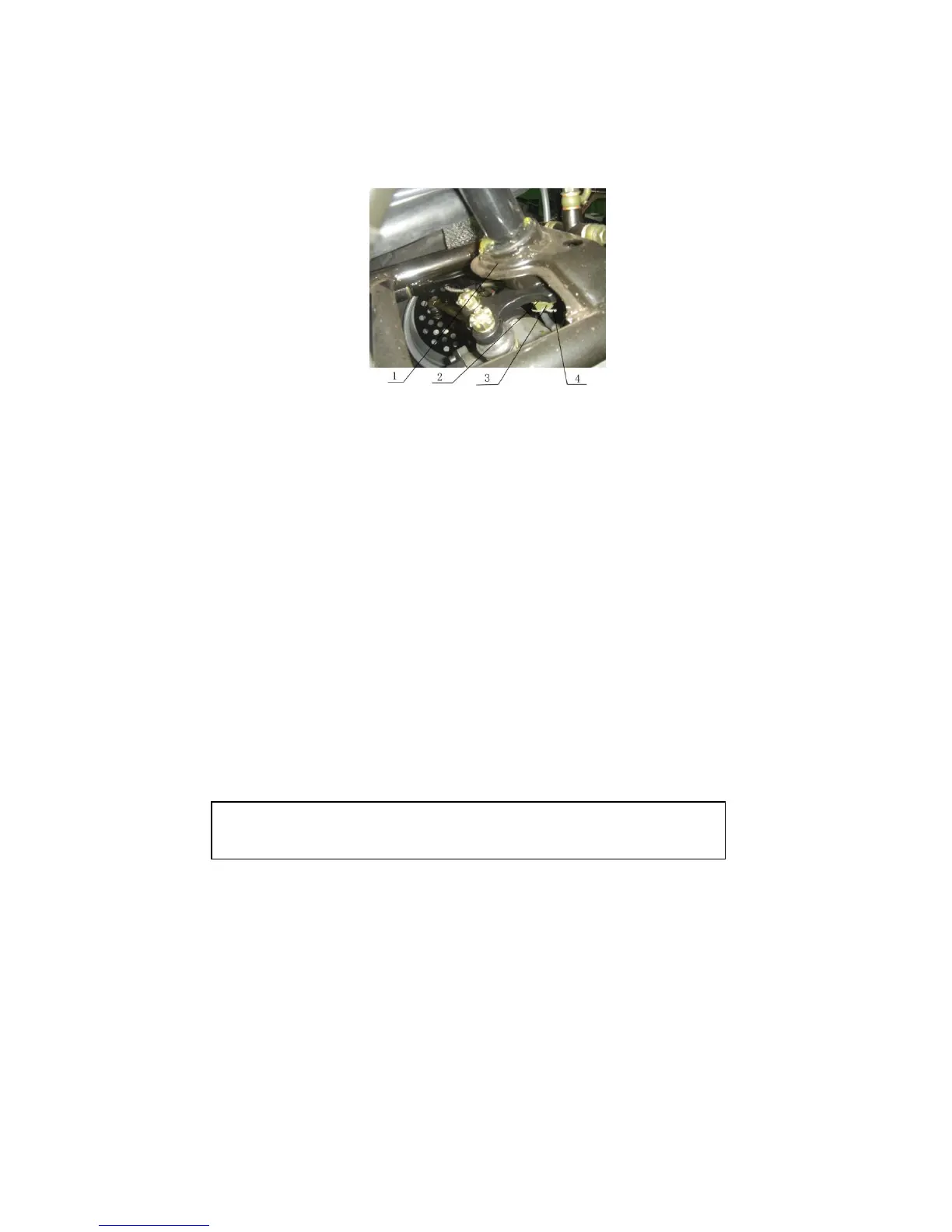

Figure 4-1-9
1) 、Steering bottom seat
2) 、Cushion
3) 、Hexagon open-groove nut M14
4) 、Cotter pin 3.2×32
2. Fix the steering vertical column onto the frame with
hexagon flange bolt M8*60 (2pcs), supporting stent (1pcs),
inner and outer supporting bracket (2pcs), stop reverse
piece (1pcs) and collar pipes (2pcs). (Figure 4-1-10)
Fastening Torque of M8*60 Bolt: 26-30N.m
Caution: inner surface of the supporting brackets
must be greased with lithium lubrication.
