Then remove the whole unity.
Figure 4-2-6
Figure 4-2-6
1) Bottom seat of Disk Brake Pump
2) Disk Brake Pump unity

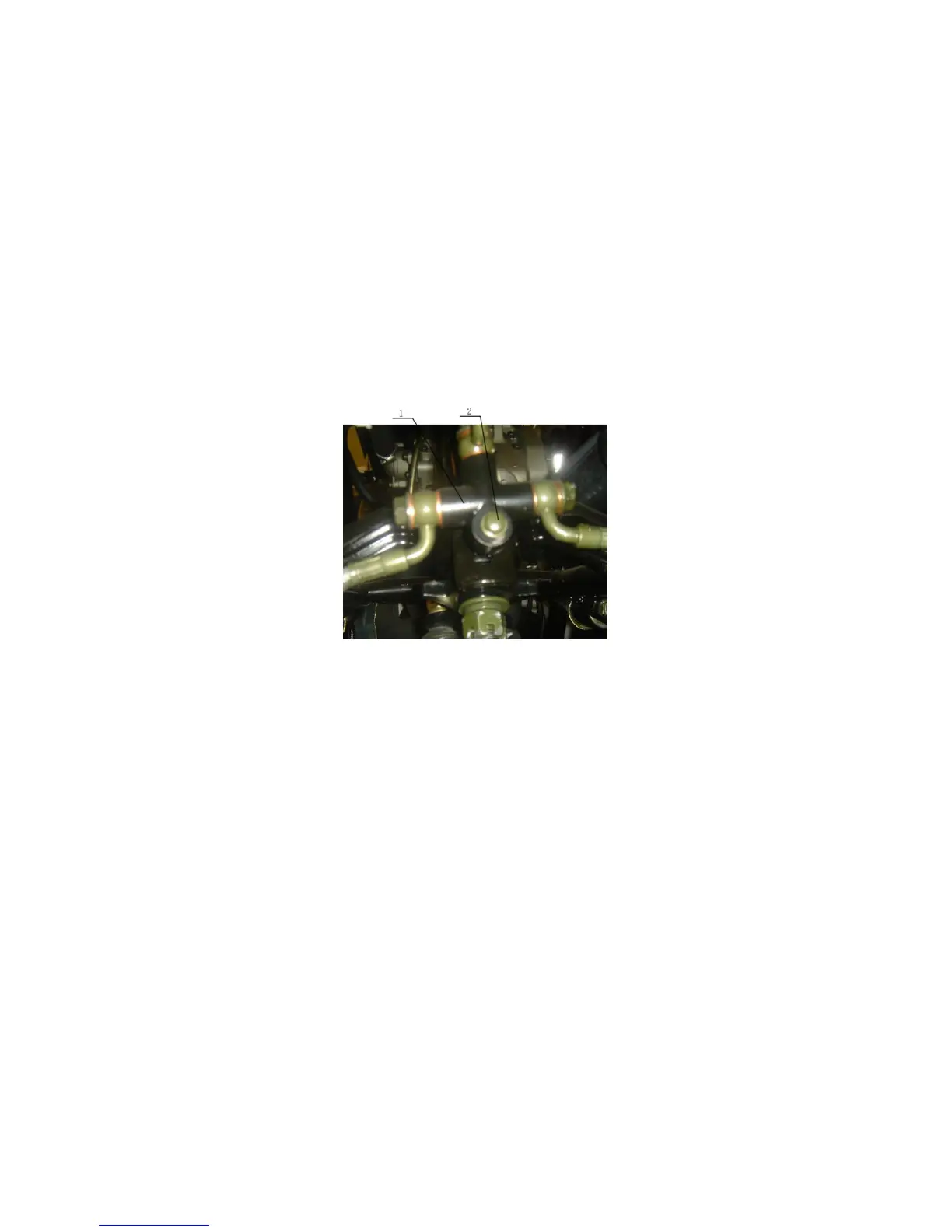

2、Remove the Front Fuel Pipe Brackets (Figure4-2-7)
Figure4-2-7
1).branch seat of Disk Brake Fuel Pipe
2).Hexagon Flange Bolts M8
3. Detach the Plate Clip nut and remove the Plate
Clip (Figure4-2-3).
4、 Remove the Front brake plate system (Figure4-2-3)
4.2.1.4Inspection of the Front Brake System
1. Check the Brake Fluid Box for crack, leakage and other
