Charge system

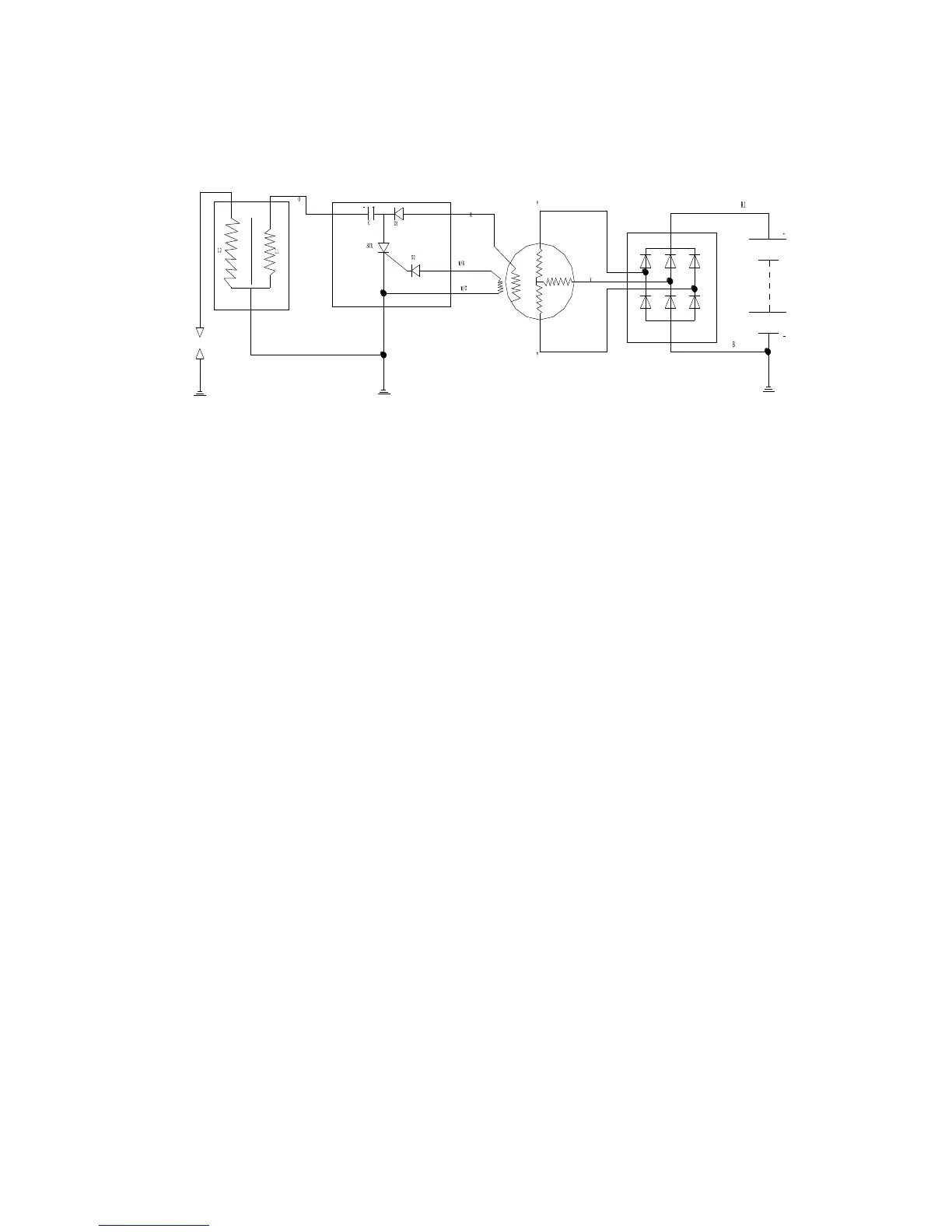

The key diagram of charge elements
5.2 magneto and charge system
The elements of charge:
When the engine running, driven magnet rotor
circumgyrate, so on the stator coil produce alternating current
then induce electromotive force come into to being the pressure.
Through 3 lines Y (yellow) output into the rectifier, through
rectifier into direct current pressure and output. Through R1
to charge the battery.
5.3 Battery
Under the following problems, please change the battery
1. With long time charge but the pressure do not increase to
a set value.
2. At the bottom of case there is something dirty or
