4、Open the differential, and inspect wear condition of gear,

shaft and cushion, then replace the defective

component.

4.4.1.4

assembly of fore bridge component

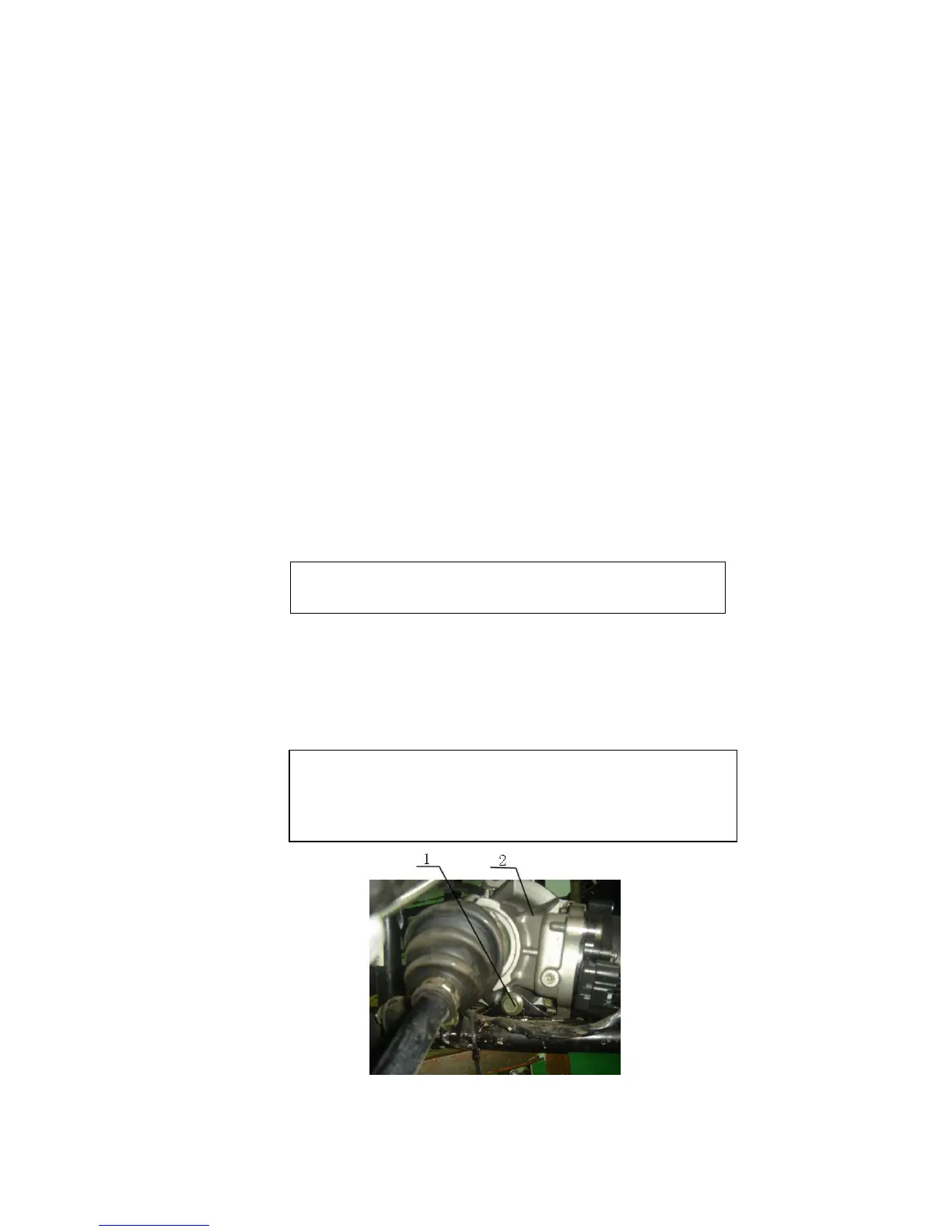

1、Fix transmission shaft onto fore bridge differential.

(Figure 4-2-19)

2、Inject 0.32L of Gear Lubricant of SAE 80 API GL-4 into

Fore bridge differential. Then tighten the bolt.

Torque of the bolt: 23N.m

3、Fix the fore bridge differential onto the frame with

hexagon flange bolt M10×110 (2pcs), M10 nuts (2pcs),

cushion 10 (2pcs) (Figure 4-2-21).

Fastening Torque of the Bolt is

40 N.m～45N.m.

(Figure 4-2-21)
