PowerMax 500 Bearclaw - Left Crankshaft Case Cover; Magneto; Remove the Stator Coil; Remove the Pulse Coil

36

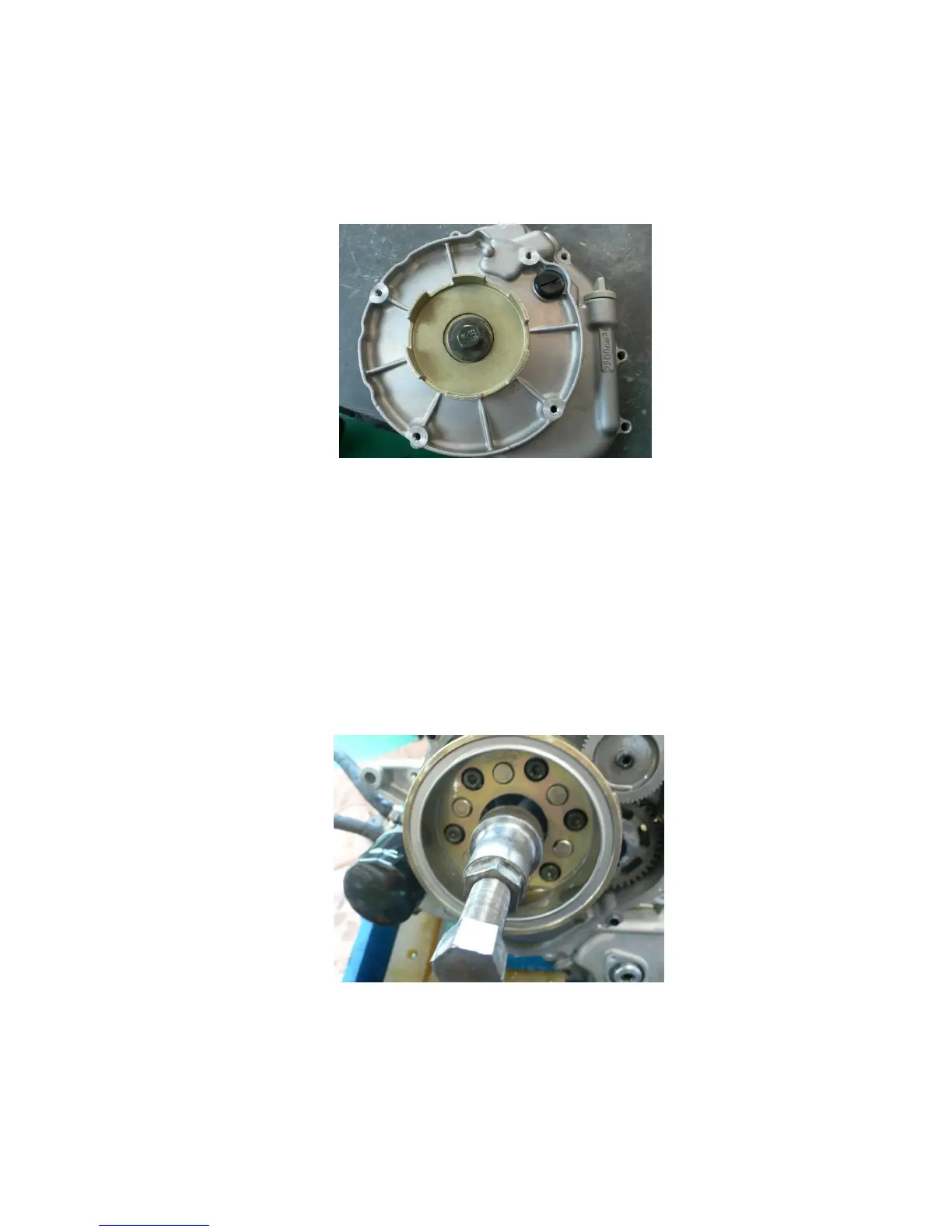

3.1.5 left crankshaft case cover
See figure 2-40.
Figure 2-40
3.1.6 Magneto
Remove the stator coil
Remove the pulse coil
Remove the stator with rotor stripper. See figure 2-41.
Figure 2-41
Remove the woodruff key. See figure 2-42.
