PowerMax 500 Bearclaw - Front Tank Components

110 pages

To Next Page

To Previous Page

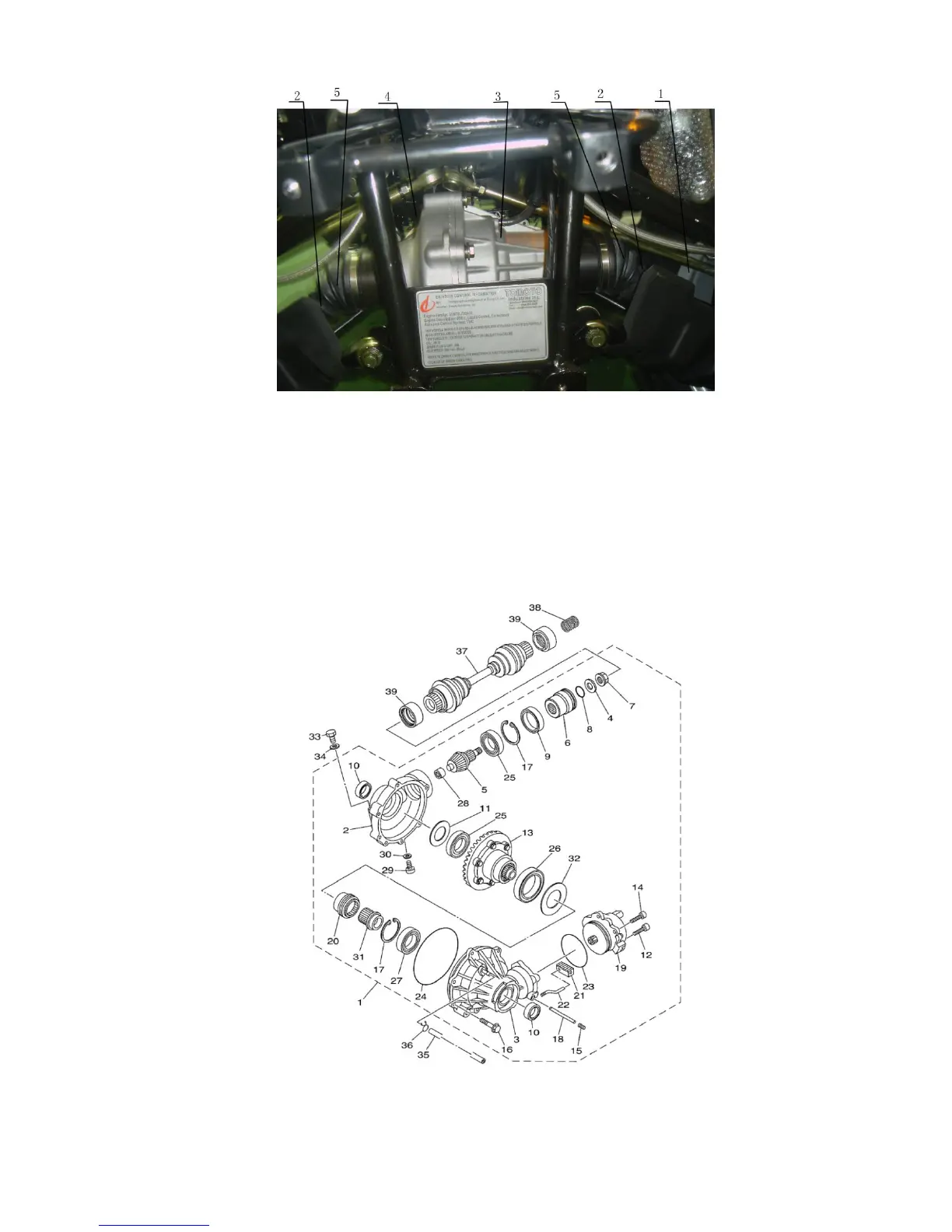

Figure 4-2-19

1、front wheel hub 2 、L/R transmission shaft 3 、fore bridge differential

components 4、middle transmission shaft components of fore bridge

5、L/R turning joint

Front tank components

1、gear-box assembly of front bridge 2、 the right cover 3、the left case 4、cushion φ
