PowerMax 500 Bearclaw - Piston and Connecting Rod

34
Cylinder
Oil seal
Dowel pin
。Shim(cylinder)
See figure 2-35.

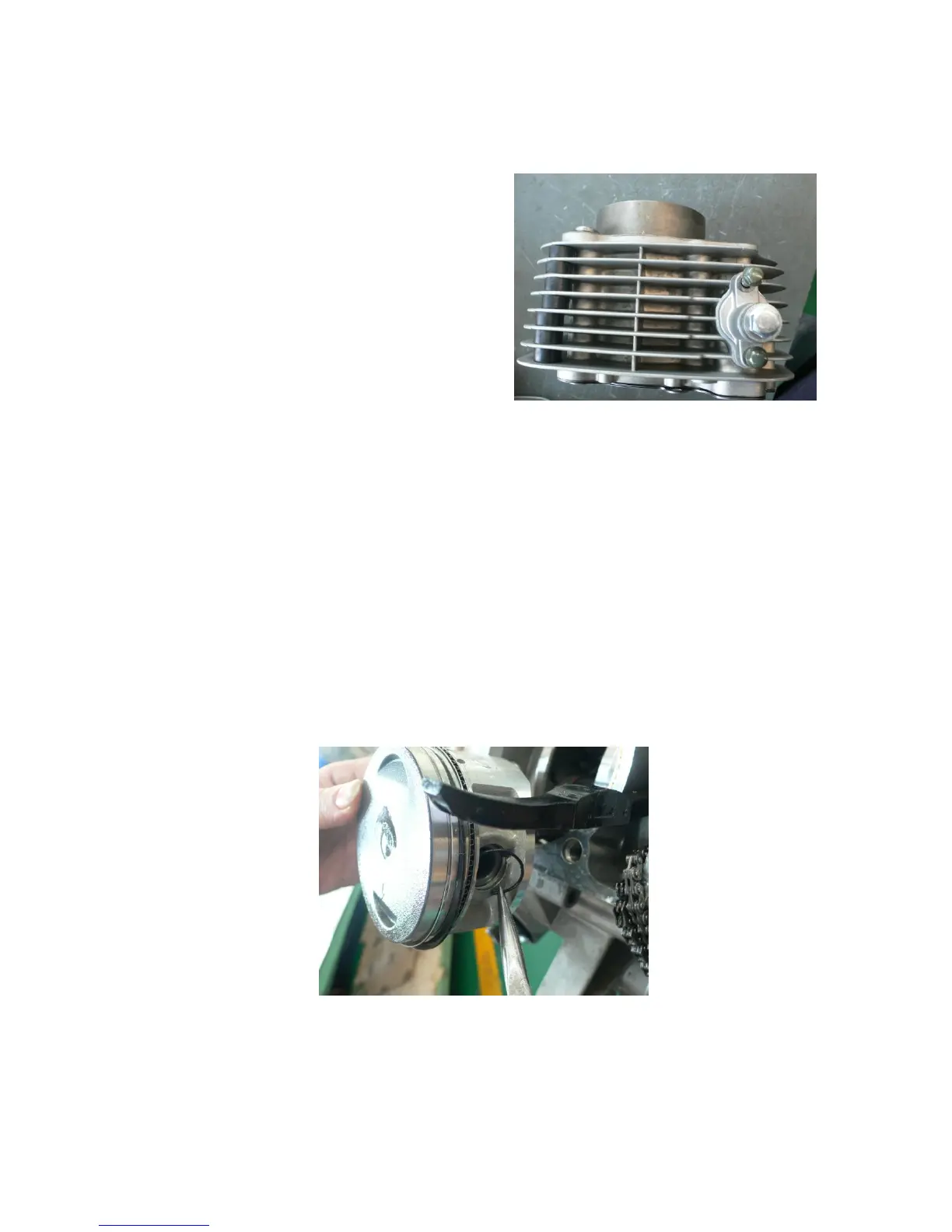

Figure 2-35
3.1.2 Piston and connecting rod
①remove the piston circlip
Note: block the crankcase breather with a piece of
cleaning cloth to avoid the circlip falling into the
case. See figure 2-36.
Figure 2-36
②remove piston pin and piston
