operator and therefore must be periodically
inspected and maintained.
b) Rear wheels of the vehicle use brake plates
mechanized by a rear brake pedal. Please follow
the tips of inspection as below.
c) Inspect the brake fluid box level on the right
handlebar. Should the fluid level falls under the
minimum mark, please refill the box with the same
type of fluid as was recommended by the manufacturer
(Figure 4-2-9) to ensure the fluid level is higher
than the minimum mark.

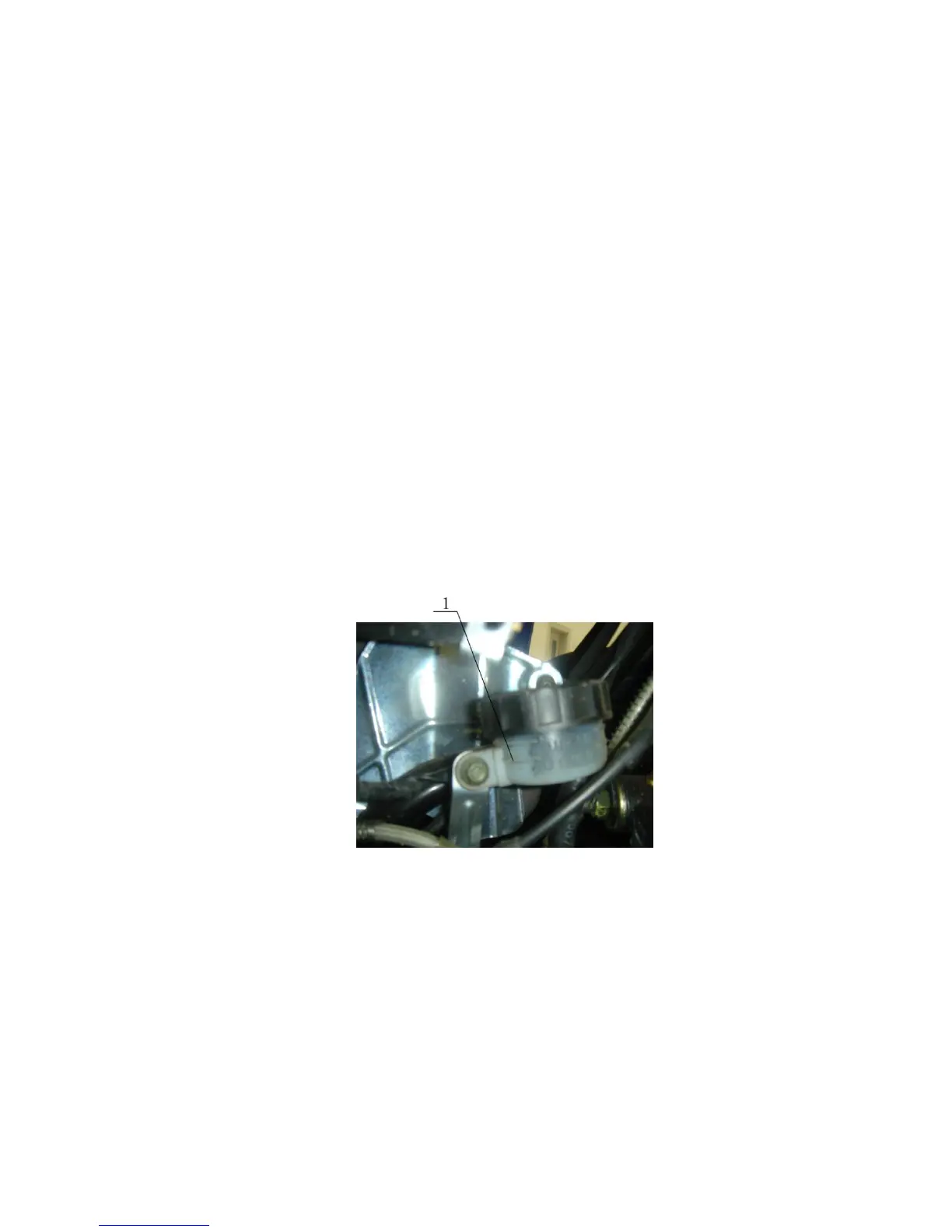

Figure 4-2-9
Figure 4-2-9
1、Minimum Mark
d) Travel distance of the Rear Brake Pedal should be
kept between 20mm-30mm. Otherwise, please adjust the
screw to meet required travel distance.( Figure 4-2-10)
e) Inspect the elasticity
