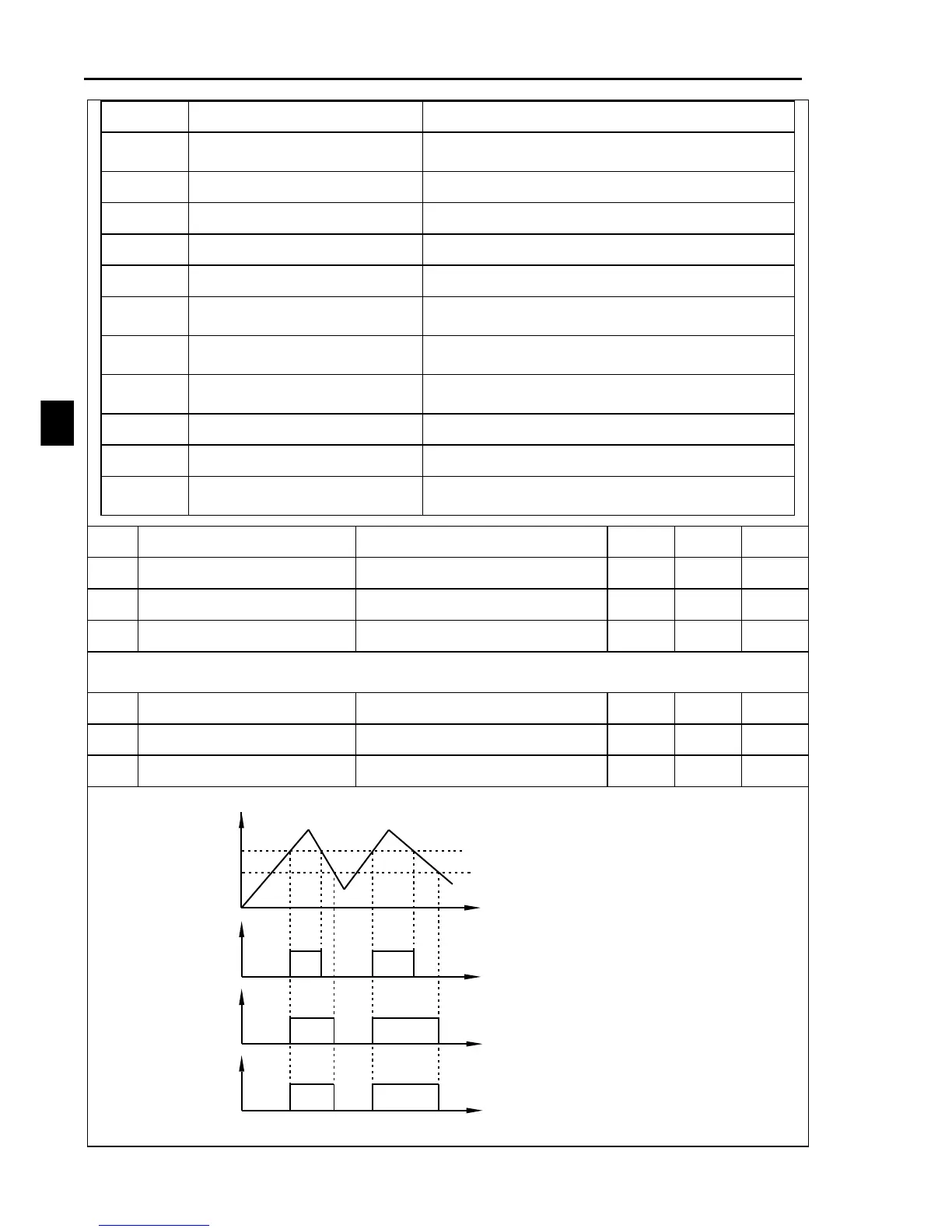

Powtran PI8600 Series User Manual

Section V Parameter Function Table
56
Section V
23
Deceleration running
Inverter is under deceleration running
24
Acceleration running
celerate running
Inverter is under acceleration running
25
Arrival of high pressure
Arrival at hight pressure
26
Arrival of low pressure
Arrival at low pressure
27
Arrival of inverter rate current
Arrival at inverter rate current
28
Arrival of motor rate current
Arrival at motor rate current
29
Arrival of input frequency
lower limitation
Present set frequency is less than frequency
lower limitation
30
Arrival of current upper
limitation
Arrive at current of upper limitation
31
Arrival of current lower
limitation
Arrive at current of lower limitation
32
Time to reach limit time 1
Timing action mode refer to o65 configuration
33
Time to reach limit time 2
Timing action mode refer to o66 configuration
34
Inverter ready to run
The end of initialization when the drive power
on , running command is acceptable.
o25
Output signal delay 1
0~32.000
s
0
Y
o26
Output signal delay 2
0~32.000
s
0
Y
o27
Output signal delay 3
0~32.000
s
0
Y
o28
Output signal delay 4
8000
-
s
0
Y
o25~o28 defines o21~o24 output signal reaction delay time, unit is S.
Output signal cut off action without delay.
o29
FDT set frequency 1
o30~Max frequency
Hz
0.00
Y
o30
FDT set frequency 2
0~o29
Hz
0.00
Y
o31
FDT inspection range
0.00~5.00
Hz
0.00
Y
Frequency detection range as 0， the output signal terminal movement is as below ：
time
time
time
output frequency
FDT frequency
setting 1 arrived
FDT1=35Hz
FDT2=30Hz
FDT frequency
setting 2 arrived
ON means signal will react, OFF means signal will not react
OFF
ON
OFF
ON
FDT frequency
inspection level
time
OFF
OFF
OFF
OFF
ON
ON
ON
ON
