2.8.3.2 Analog Control Card Pin Assignments

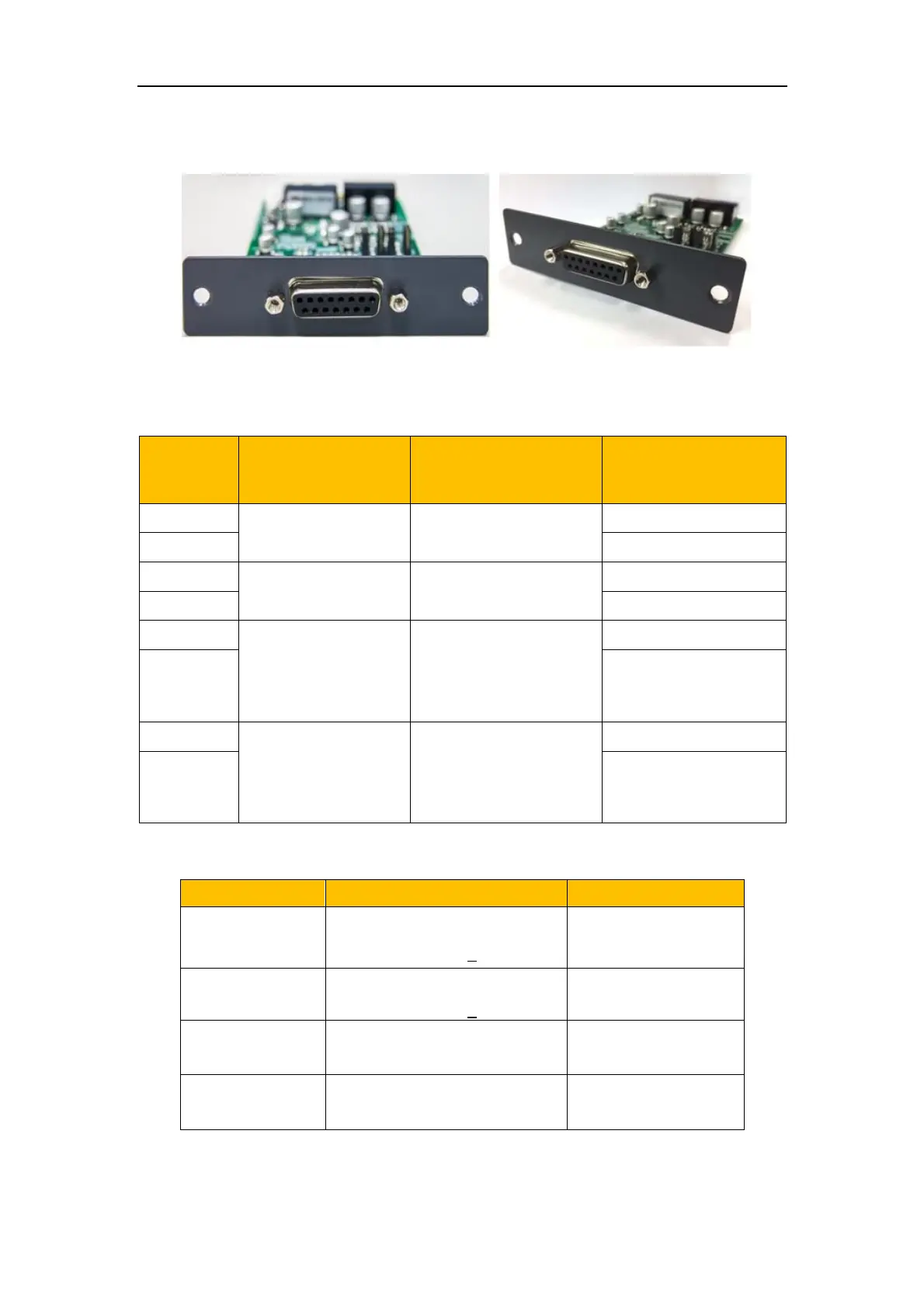

Figure 2.14 Analog control 15-pin D-type female connector
Definitions of analog control signal pin:
Analog con-
trol
Analog signal source
AFV-P
voltage & frequency
Pin
Setting
Voltage
(0-5Vdc or 0-10Vdc)
Output voltage
(0-310V)
Pin 1 / Pin5 (GND)
Monitoring
Pin 11 / Pin15 (GND)
Setting
Current
(4mAdc - 20mAdc)
Output voltage
(0-310V)
Pin 2 / Pin5 (GND)
Monitoring
Pin 12 / Pin15 (GND)
Setting
Voltage
(0-5Vdc or 0-10Vdc)
Output frequency
(40-500Hz)
Output frequency
(opt. 15-1000Hz)
Pin 3 / Pin5 (GND)
Monitoring
Pin 13 / Pin15 (GND)
Setting
Current
(4mAdc - 20mAdc)
Output frequency
(40-500Hz)
Output frequency
(opt. 15-1000Hz)
Pin 4 / Pin5 (GND)
Monitoring
Pin 14 / Pin15 (GND)
Definitions of digital control signal pin:
Digital control
Digital control source
Pin
Test
5Vdc: normal high
0Vdc: active low (>10mS)
Pin 6 / Pin10 (GND)
Reset
5Vdc: normal high
0Vdc: active low (>10mS)
Pin 7 / Pin10 (GND)
Processing
0Vdc: normal low
5Vdc: active high
Pin 8 / Pin10 (GND)
Fail
0Vdc: normal low
5Vdc: active high
Pin 9 / Pin10 (GND)
