AFV-P Series High Performance Programmable AC Power Supply
41

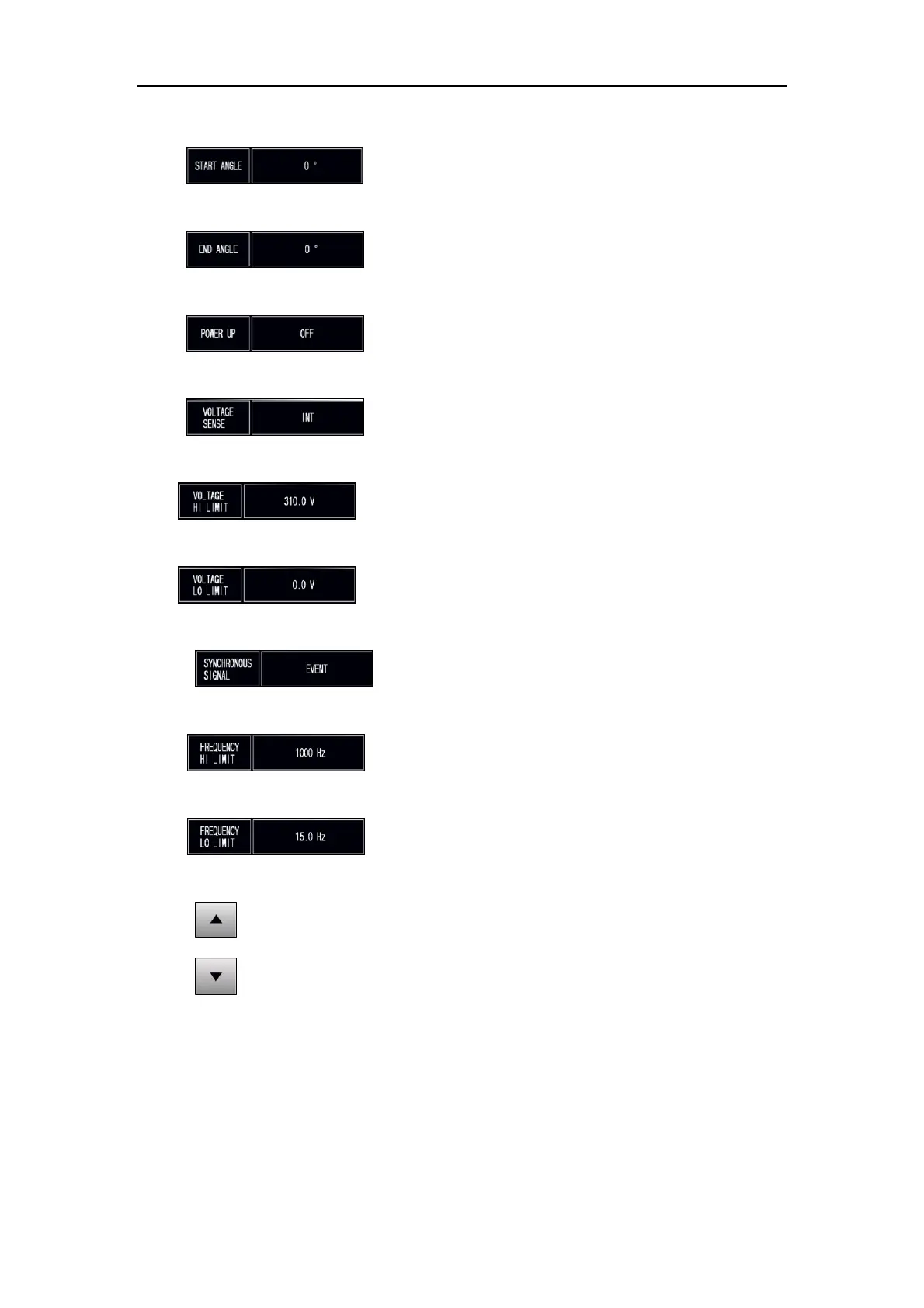

4) : Press to set the start angle, with options from 0 to
359.
5) : Press to set the end angle, with options from 0 to
359.
6) : Press to set the power-on status, with three options
of OFF, ON and LAST.
7) : Press to set the voltmeter point, with two options of
INT and EXT.
8) : Press to set the maximum output voltage, with
options from 0V to 310V.
9) : Press to set the minimum output voltage, with
options from 0V to 310V.
10) : Press to enable/disable the synchronized signal,
with three options of EVENT, OFF and ON.
11) : Press to set the maximum output frequency, with
options from 40Hz to 500Hz (opt. from 15Hz to 1000Hz).
12) : Press to set the minimum output frequency, with
options from 40Hz to 500Hz (opt. from 15Hz to 1000Hz).
13) : Press to move to the previous page of the TESTING subpage.
14) : Press to move to the next page of the TESTING subpage.
