AFV-P Series High Performance Programmable AC Power Supply
44

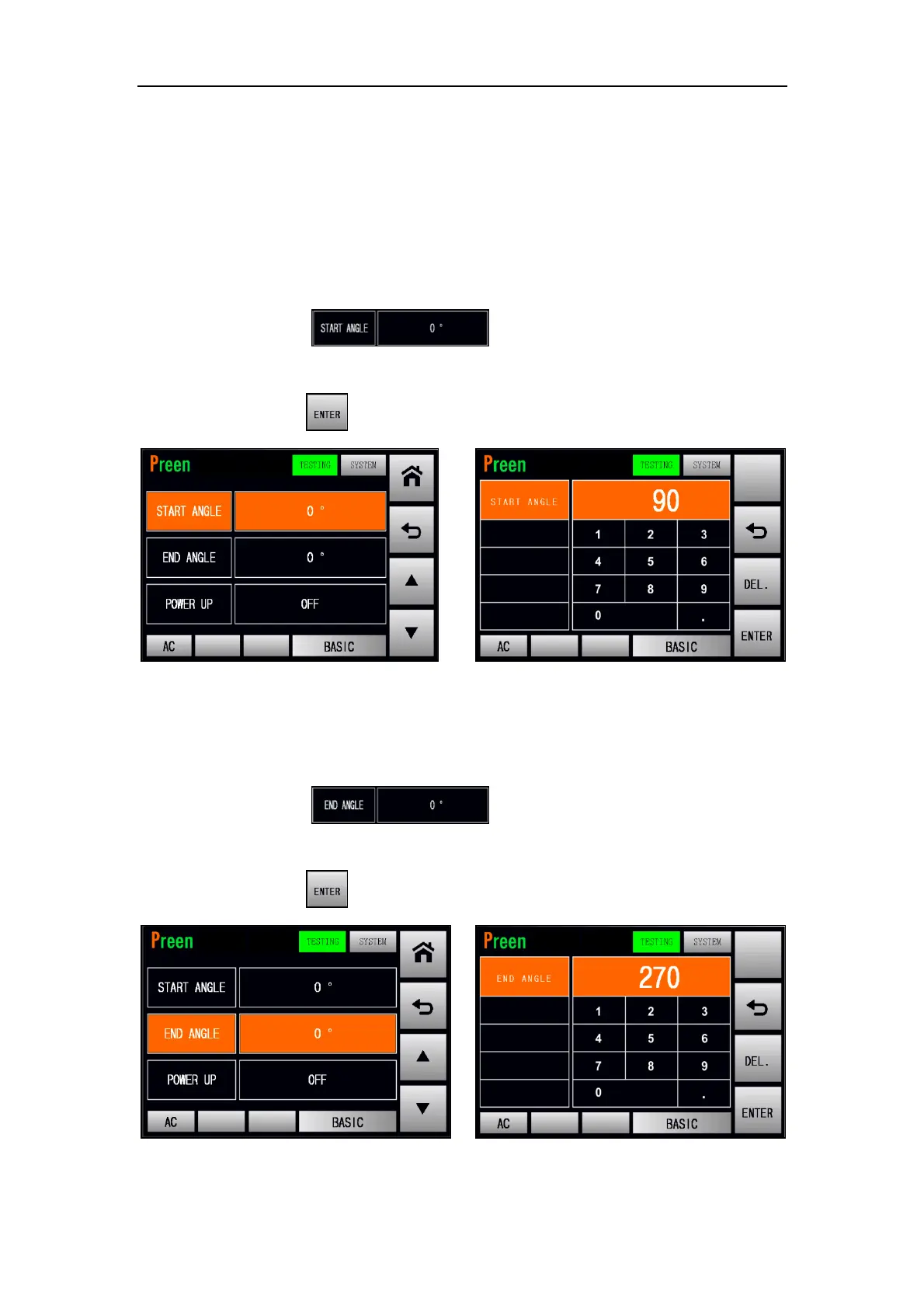

3.5.2.3 Output Phase Angle
At the TESTING subpage 2 (BASIC mode), users are allowed to set the output phase
angel with options from 0 to 359 by using the touch screen and the rotary knob
(refer to Subsection 3.2). The product can control the output phase angle (that is, the
start angle and the end angle) of the output waveform.
Firstly, the procedures of setting the start angle from 0 to 90 by using the virtual
numeric keys are given as below:
1. Press the item to use the virtual numeric keys to set
the value of 90.
2. Press the icon to confirm.
Figure 3.29 Set the start angle from 0 to 90 (BASIC mode)
Secondly, the procedures of setting the end angle from 0 to 270 by using the virtual
numeric keys are given as below:
1. Press the item to use the virtual numeric keys to set
the value of 270.
2. Press the icon to confirm.
Figure 3.30 Set the end angle from 0 to 270 (BASIC mode)
