4-46 Controls and Instruments
PA-1628Operator's ManualH3-45 COACH

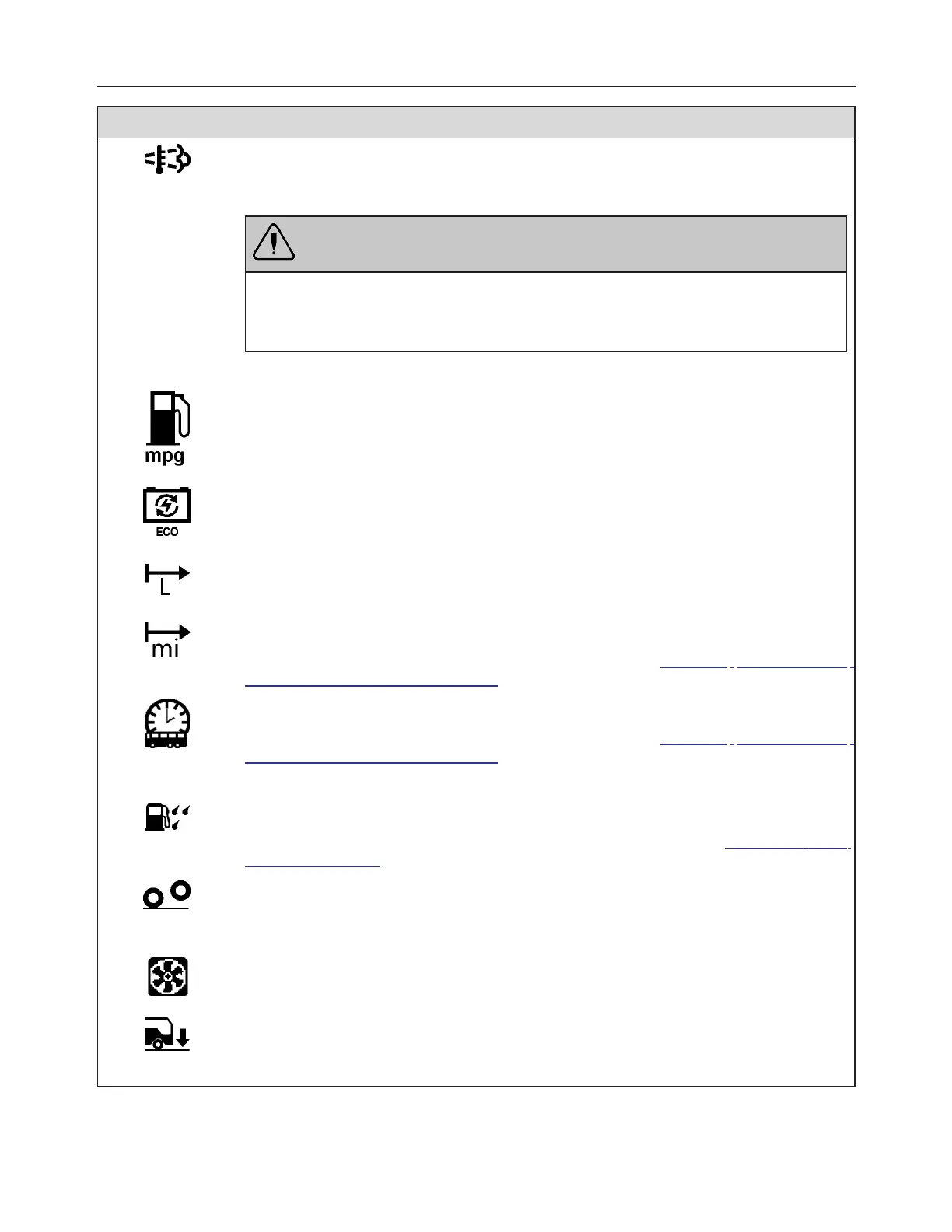

Pop-up Pictograms
High exhaust gas temperature
This pictogram appears to notify the driver of potentially hazardous exhaust gas
temperature at the DPF outlet.
WARNING
During regeneration, exhaust temperature may reach up to 1200°F (650°C) at the par-
ticulate filter. When parking the vehicle, if this pictogram is displayed, make sure that
the DPF outlet diffuser is away from people or any flammable materials, vapors or struc-
tures.
Fuel Economy
This pictogram is displayed with fuel consumption value of the vehicle. Proper units for the
displayed value are written under the pictogram: liters/100km, km/liter, mpg, and
liters/hour.
Percentage of Trip Made Using Regenerated Electricity
This pictogram is displayed with the percentage of trip done with electricity produced with
engine negative torque (braking, deceleration).
Leg Fuel Consumption
This pictogram is displayed with the value for the fuel consumption for the current leg.
Trip Data
Function of the DID’s “Time/Distance” menu. Refer to "DRIVER INFORMATION
DISPLAY (DID) MENUS " on page11 in Section 5 Other Features.
Estimated Time of Arrival
Function of the DID’s “Time/Distance” menu. Refer to "DRIVER INFORMATION
DISPLAY (DID) MENUS " on page11 in Section 5 Other Features.
Fuel Filter/Water Separator
Indicates that draining of the fuel filter/water separator is required. See "PRIMARY FUEL
FILTER" on page13 in Section 8 Care And Maintenance.
Raised tag axle
This pictogram appears if the vehicle speed exceeds 12 mph (20 km/h) while the tag axle is
raised.
Cooling fans low voltage
This pictogram indicates that battery voltage is too low for proper fan operation.
Low buoy & Kneeling
This pictogram appears if the vehicle speed exceeds 12 mph (20 km/h) while the front
suspension of the vehicle or the entire vehicle suspension is lowered.
