Section 05: COOLING SYSTEM
12 X3-45 Commuter PA1593 DOB 2400-2489 Section 05 Updated Sept.2016
DANGER
Coolant is toxic; risk of poisoning. Do not
drink coolant. Use proper hand protection
when handling. Keep coolant out of reach of
children and animals. Failure to follow these
precautions can cause serious illness or
death.

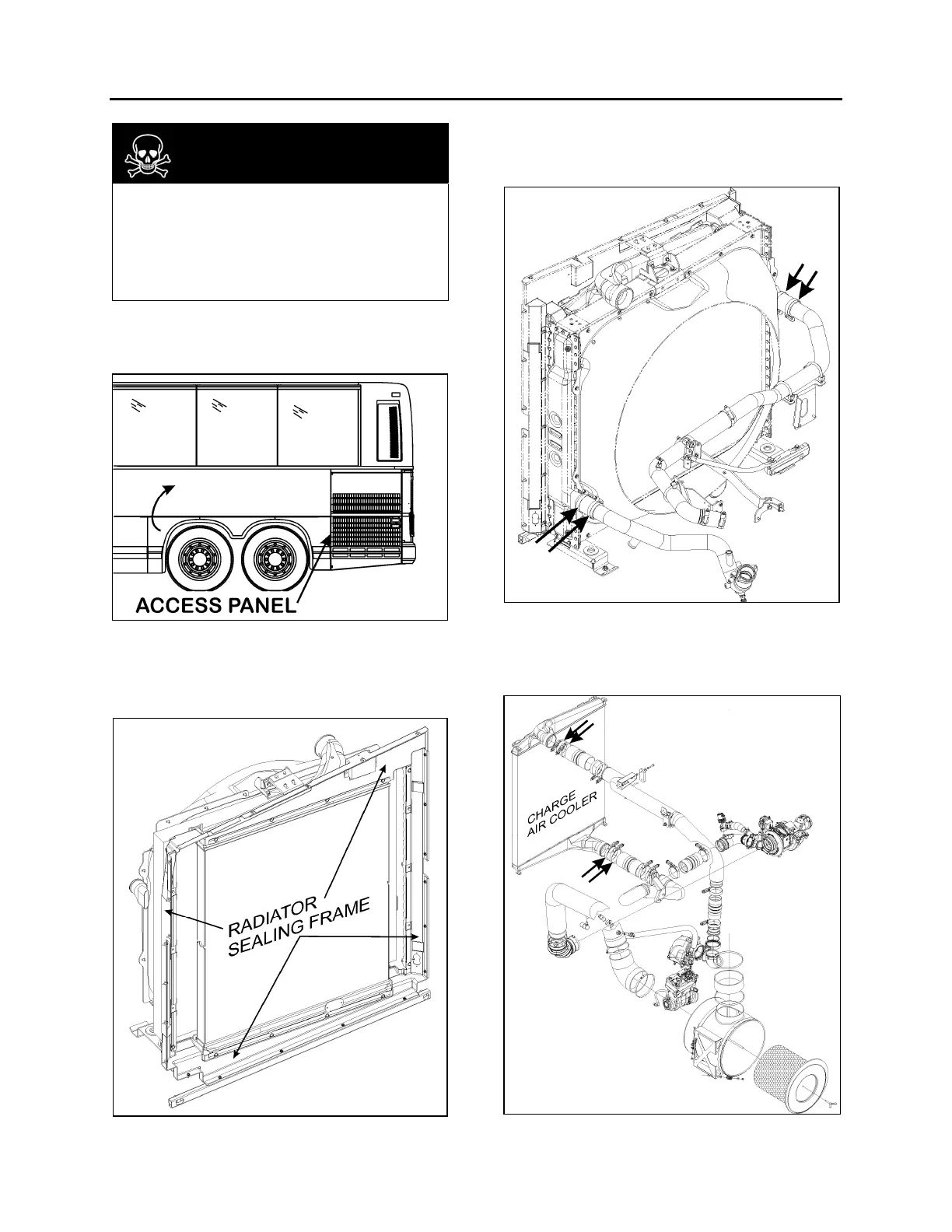

7. Unfasten 4 cap screws and remove access
panel located behind tag axle L.H. side
wheel (refer to figure 11).
FIGURE 11: ACCESS PANEL (TYPICAL)
8. Open radiator door to access radiator
assembly. Unfasten upper arm assembly.
9. Remove radiator sealing frame.
FIGURE 12: RADIATOR SEALING FRAME
10. Remove clamps and then break hoses from
the front coolant and charge air pipes (Fig.
13 & 14).
FIGURE 13: RADIATOR HOSE CLAMPS
11. Remove rear coolant and charge air hose
clamps then break hoses loose (Fig. 13 &
14).
FIGURE 14: CHARGE AIR COOLER HOSE CLAMPS
