12. Remove the upper radiator assembly
support bracket (Fig. 15).

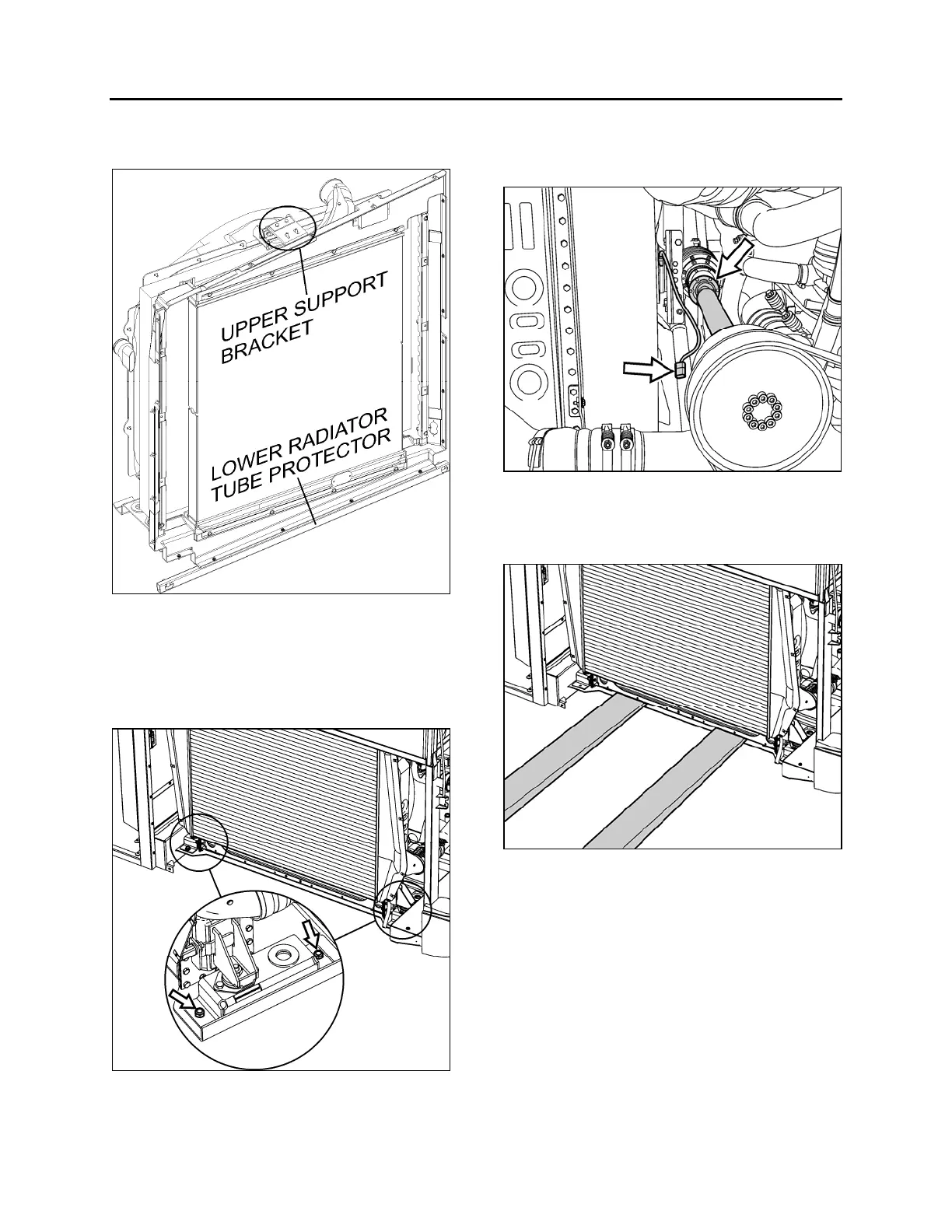

FIGURE 15: UPPER SUPPORT BRACKET & TUBE
PROTECTOR
13. Remove the lower radiator assembly tube
protector from the lower section (Fig. 15).
14. Remove all lower radiator assembly
mounting fasteners.
FIGURE 16: RADIATOR ASSEMBLY LOWER MOUNTING
FASTENERS
15. Cut cable tie and disconnect electrical
connector from fan clutch. Remove fan drive
shaft fasteners at the gear box.
FIGURE 17: DISCONNECTING FAN DRIVE SHAFT
16. Position a forklift under the radiator
assembly that is capable of safely lifting the
radiator.
FIGURE 18: POSITIONING FORKLIFT
17. With assistance, slide radiator assembly out
and onto the forklift. Transfer radiator
assembly to a secure location.
18. Separate charge air cooler from radiator.
19. Lay radiator face down. Remove the
fasteners that connect lower radiator mounts
to radiator.
