562400-000, Issue 1.3 January 2022
Page 26 of 61

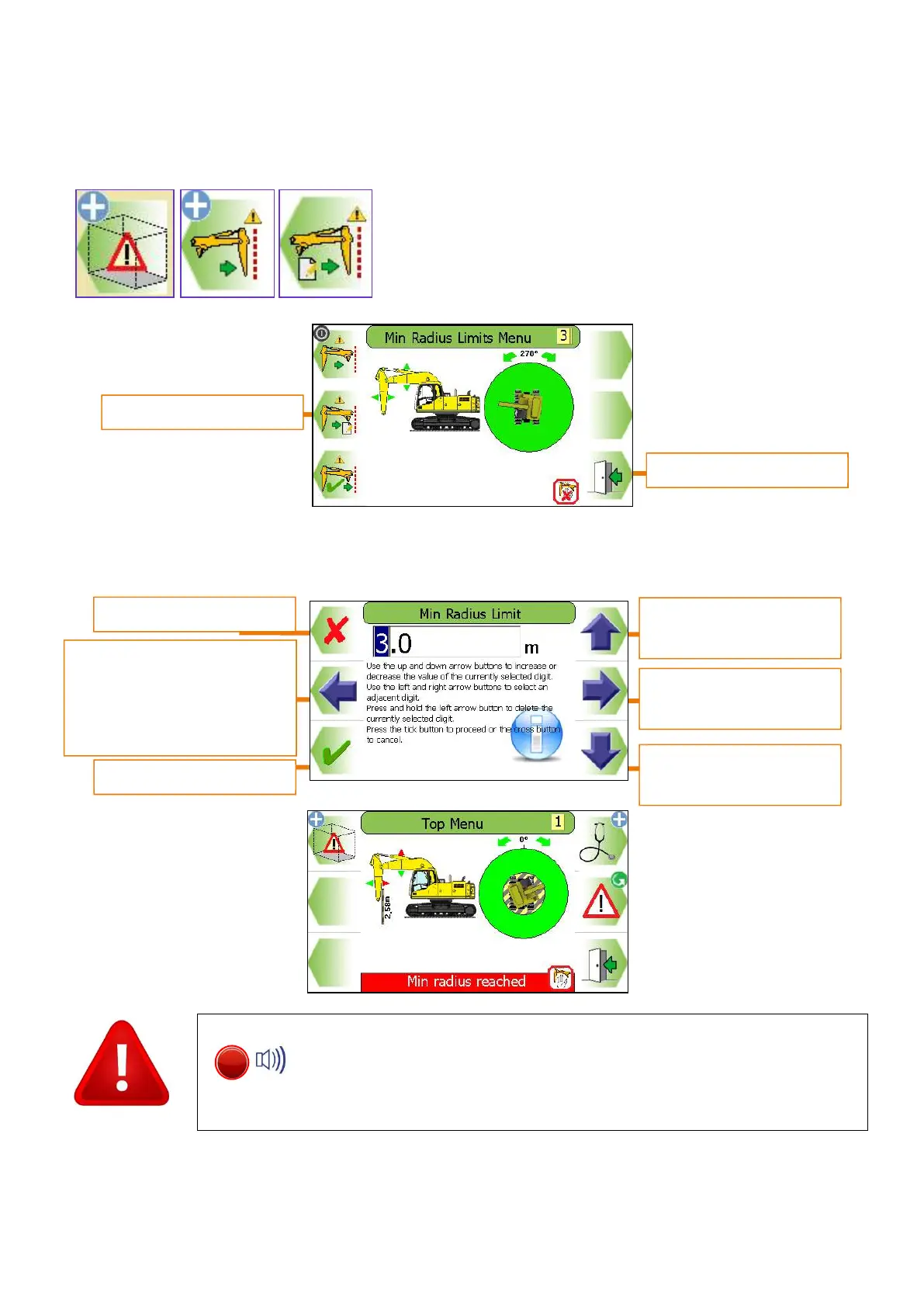

7.3.2. Min Radius Limit Setting - Known Min Radius
A known limit can be entered into the display. This is the
horizontal distance from the slew centre of the machine to the
tool pin.
Use the UP and DOWN Arrow icon buttons to increase and decrease the highlighted number. Use the
LEFT and RIGHT Arrow icon buttons to move the highlighter to the left and to the right.
Once a limit is set, the internal alarm will sound and the RED LED will
light if the equipment exceeds the current limit. Always check that the
current limit activates at the set point. The restriction cannot be
deactivated if in the alarm state. Observe the operational limitations
given in section 4.
Exit to previous menu
Decreases highlighted
digit
Moves highlighter to
right
Increases highlighted
digit
Cancel without change
Moves highlighter to left;
Move left beyond first
digit to insert “0”;
Hold to delete digit.
To Next Page
