562400-000, Issue 1.3 January 2022
Page 11 of 61

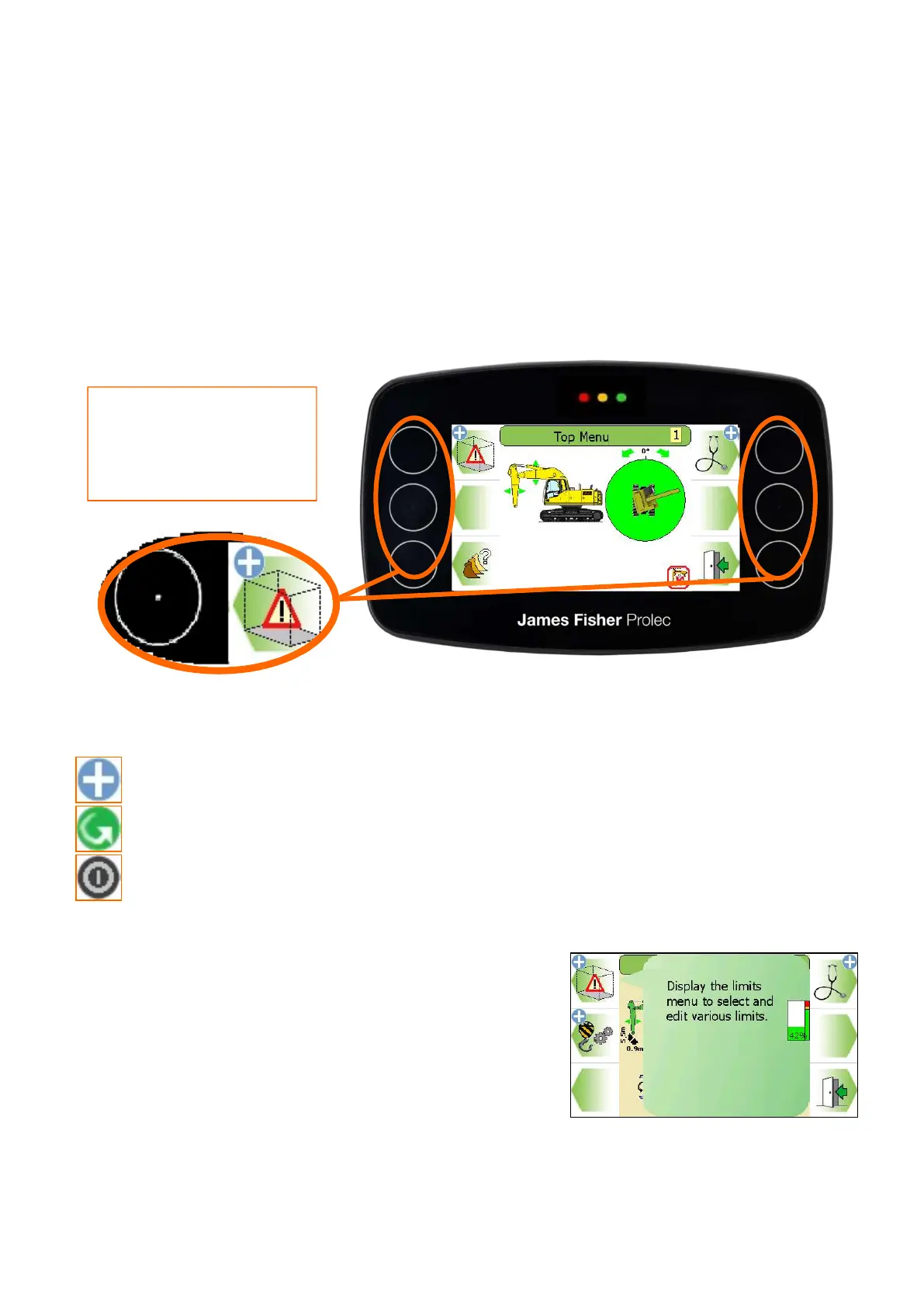

5.2. Using the Display
The display is operated by using the buttons adjacent to a function icon. The buttons can open a
sub menu, turn a function ON or OFF, set a value and toggle through multiple screens. No one
button has a single function. The button icon will turn black/purple when the button has been
activated. Icons can be assigned for Supervisor use only, to access them enter the supervisor
code or use the supervisor key switch (if fitted), see section 5.4. Note that the side view of the
machine shown in PME400/405 is fixed and does not follow the movement of the machine.
A secondary symbol can appear in the top left corner of an icon, these mean:
The plus symbol indicates a sub menu will be opened if selected.
The cycle symbol indicates that multiple features are available.
The on/off symbols indicate if a feature is ON or OFF. Red is ON and grey is OFF.
Help is available for each button. To access help, push
and hold the relevant button for three seconds. The help
screen can be cleared by pressing any button. PME is still
active when displaying help messages; alarms or warning
conditions will be indicated, as appropriate.
Multifunction buttons:
The action of the button is
indicated by the adjacent
icon.
