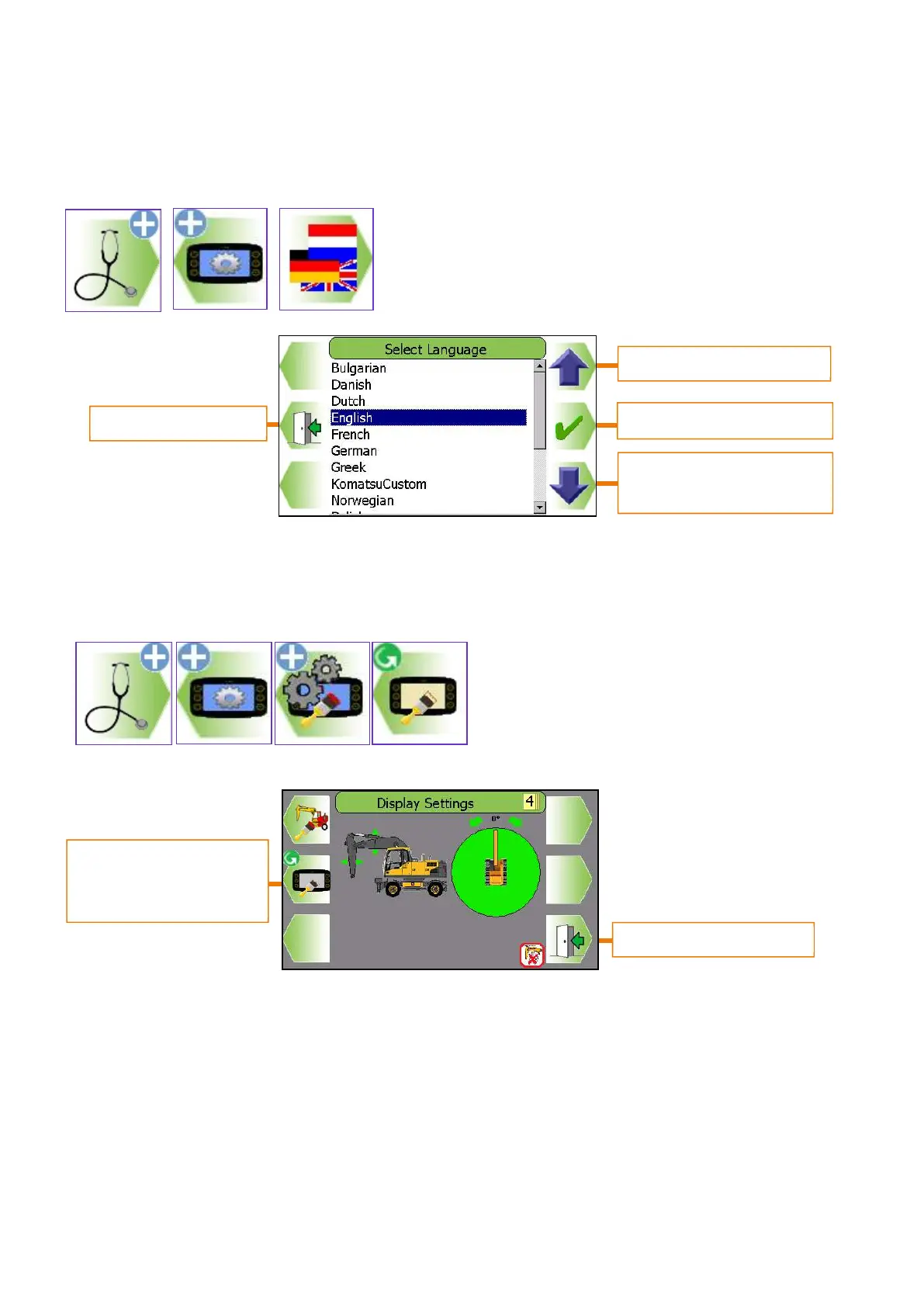

13.3. Select Language

The appropriate language can be selected from this list.

13.4. Background colour

Different background colours, White, blue, cream

and grey are available. Use this button to choose

as required.

Exit without change

Moves highlighter DOWN

Moves highlighter UP

Accept highlighted item

Exit to previous menu

Scroll through and

accept background

colour
