7.3.3. Min Radius Limit Setting - Using Current nearest Point
Set the limit using the current nearest point of the machine.
Ensure the equipment is off the ground before setting the
limit.

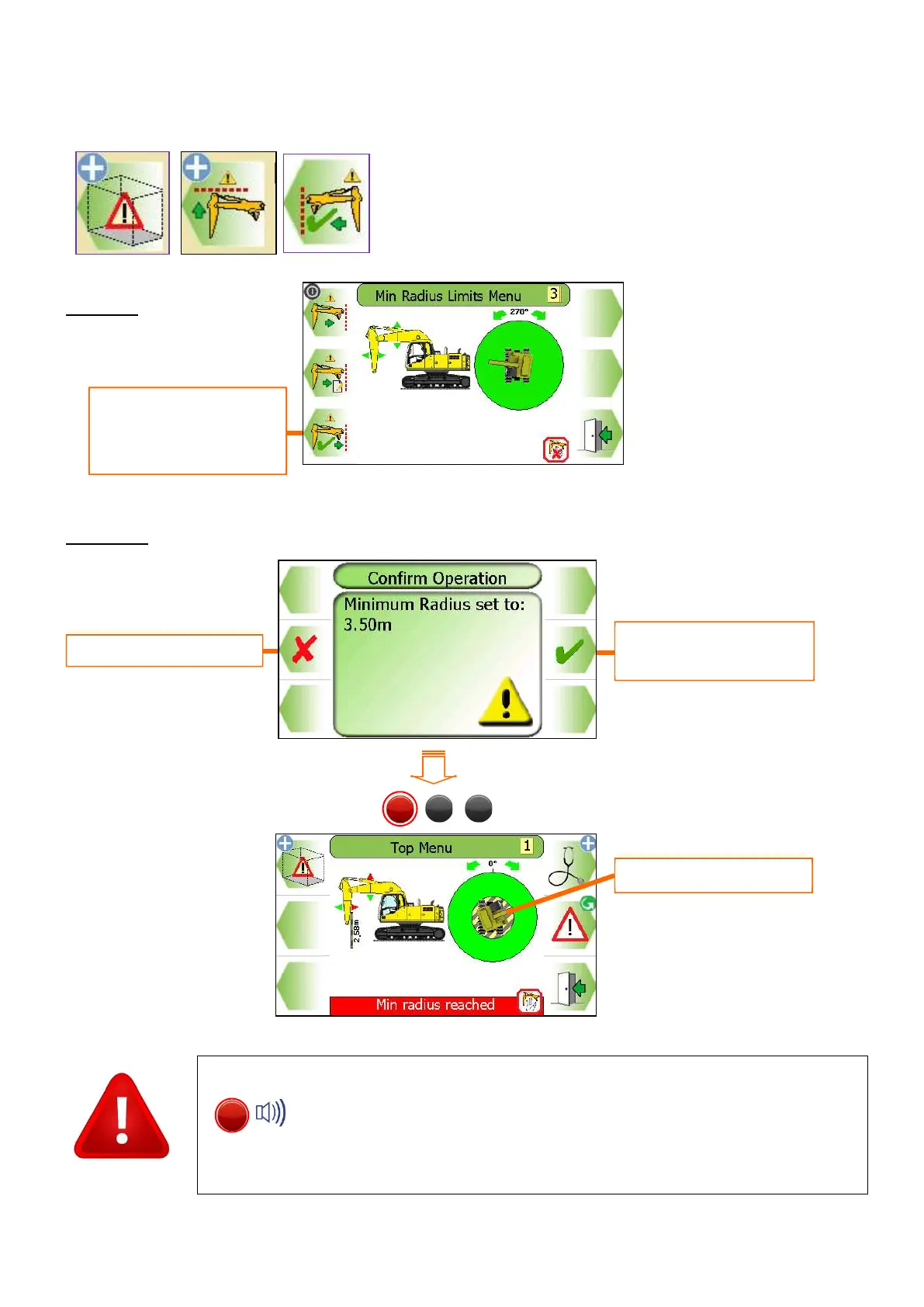

Step One
Step Two: Check the limit and press Green TICK to accept.
If you attempt to set a height limit below the current machine height, an
error will be shown. Move the machine to be lower than the desired
height, and then try again. Once a limit is set, the internal alarm will
sound and the RED LED will light if the equipment exceeds the current
limit. Always check that the current limit activates at the set point. The
restriction cannot be deactivated if in the alarm state. Observe the
operational limitations given in section
Move equipment to
required min radius limit
and press this button
Radius limit shown here
Exit without change
Accept the value shown
To Next Page
