562400-000, Issue 1.3 January 2022

Page 54 of 61

14. User Login

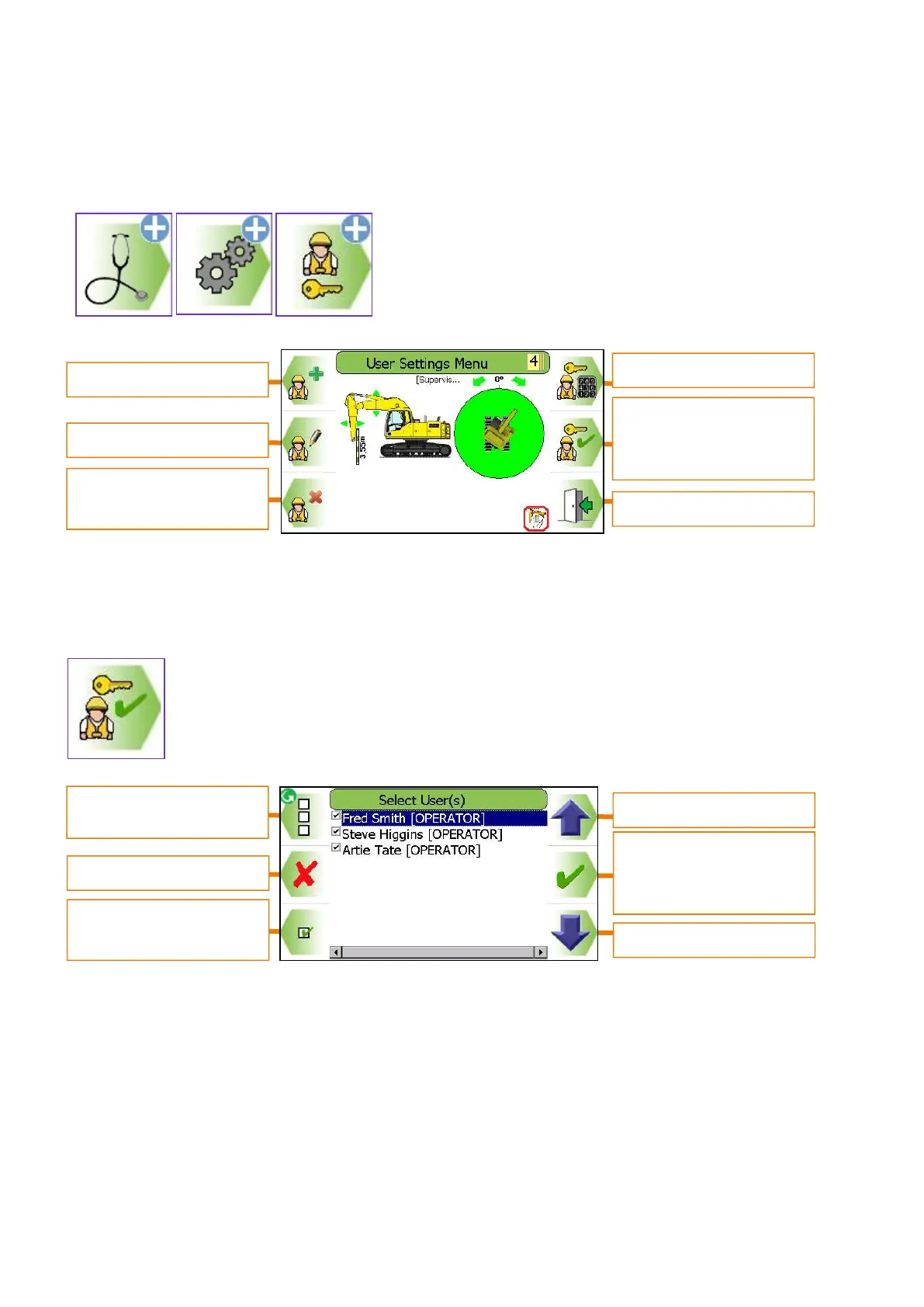

14.1. User Login Setup

Requires supervisor access rights.

14.2. Enable / Disable Users

Requires supervisor access rights

Edit user login code

Exit to previous menu

Cancel without change

Select / deselect

highlighted entry

Select user(s) to be

displayed on login

screen

Select / de

select

operator all entries

Select user to

delete

Add new user

Select user to edit

Exit to previous menu

Edit user login code

Select user(s) to be

displayed on login

screen
