562400-000, Issue 1.3 January 2022

Page 49 of 61

11.1.1. Valve Function Test

PME 405 only

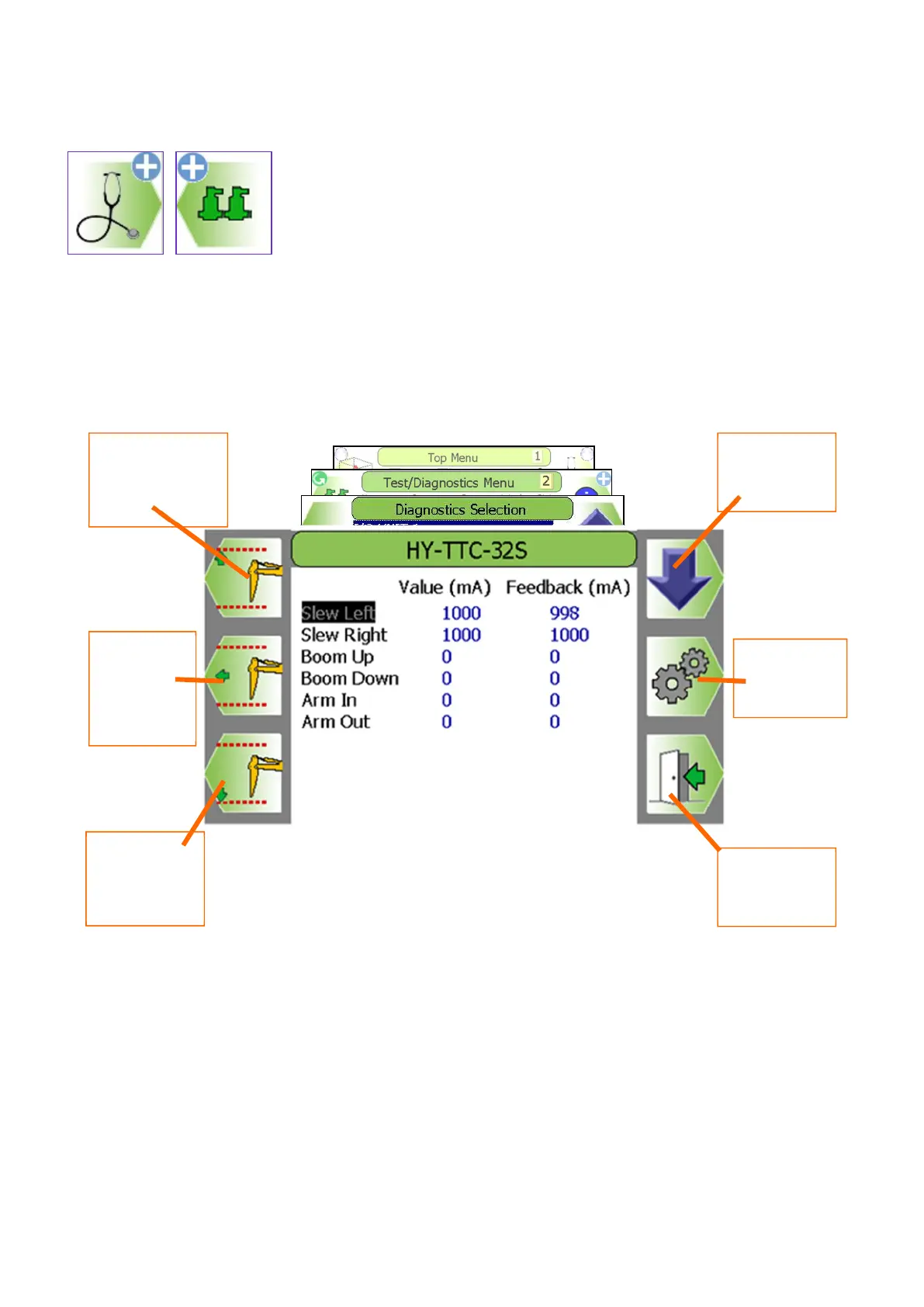

To test the proportional valves in a PME 405 system use the HY-TTC32S screen as follows. Use the blue

arrow to move between services in the list, and the three buttons on the left to choose between fast, slow,

and half-speed.

Select next

service

Set valve to Fast

(maximum)

speed

Set valve to

half speed

(Supervisor

only)

Set valve to

slow (creep)

speed

Valve

fast+slow

calibration

Exit

Table of Contents3
Use of this Document5
Notices5
System Identification6
Operating, and Hazard Situation, Recommendations7
MEC Override8
Operating Instructions9
Power up9
Using the Display11
User Login12
Supervisor Login13
User Logout13
Top Menu14
Tool Selection Menu (Optional)14
Product Type Selection Menu (Optional)15
Envelope Monitoring16
Height Limit17
Height Limit Menu17
Height Limit Setting - Known Height18
Height Limit Setting - Using Current Highest Point19
Machine Envelope Controller (MEC) - Height20
Max Radius Limit21
Max Radius Limit Menu21
Max Radius Limit Setting - Known Max Radius22
Max Radius Limit Setting - Using Current Furthest Point23
Machine Envelope Controller (MEC) - Max Radius24
Min Radius25
Min Radius Limit Menu25
Min Radius Limit Setting - Known Min Radius26
Min Radius Limit Setting - Using Current Nearest Point27
Machine Envelope Controller (MEC) - Min Radius28
Low Limits29
Low Limit Menu29
Low Limit Setting - Known Low Height30
Low Limit Setting - Using Current Low31
Machine Envelope Controller (MEC) - Low32
Slew Limits Menus33
Angular Slew Limit Setting - Using Current Slew Angle34
Virtual Wall Limit Setting - Using the Equipment36
Twin Virtual Wall Limit Setting - Using Twin Virtual Walls38
Multipoint Envelope Restriction- Using Multipoint Wall40
Machine Envelope Controller (MEC) - Slew and Virtual Wall43
Limit Control Override44
Soft Override44
Master Override Key Switch44
System Messages45
On Screen Safety Messages45
On Screen Component Error Messages46
LED and Internal Alarm Warnings47
Daily Checks47
Repair47
Test / Diagnostics48
Relay Function Test48
Valve Function Test49
Sensor Data50
Beacon, LED and Internal / External Alarm Function Test50
System Information51
Display Settings51
Day / Night Mode52
Select Display Machine52
Select Language53
Background Colour53
User Login54
User Login Setup54
Enable / Disable Users54
Add New User to Login55
Edit User Details56
Select User to Delete57
Edit User Access Code57
Taking Product out of Operation58
Service and Repair58
Maintenance Review58
Definitions / Glossary59
Amendment / Revision Record60
