Once a limit is set, the internal alarm will sound and the RED LED will
light if the equipment reaches either limit. Always check that the current
limit activates at the set points. The restriction cannot be deactivated if
in the alarm state. Do not travel once a slew limit has been set. Observe
the operational limitations given in section 4.

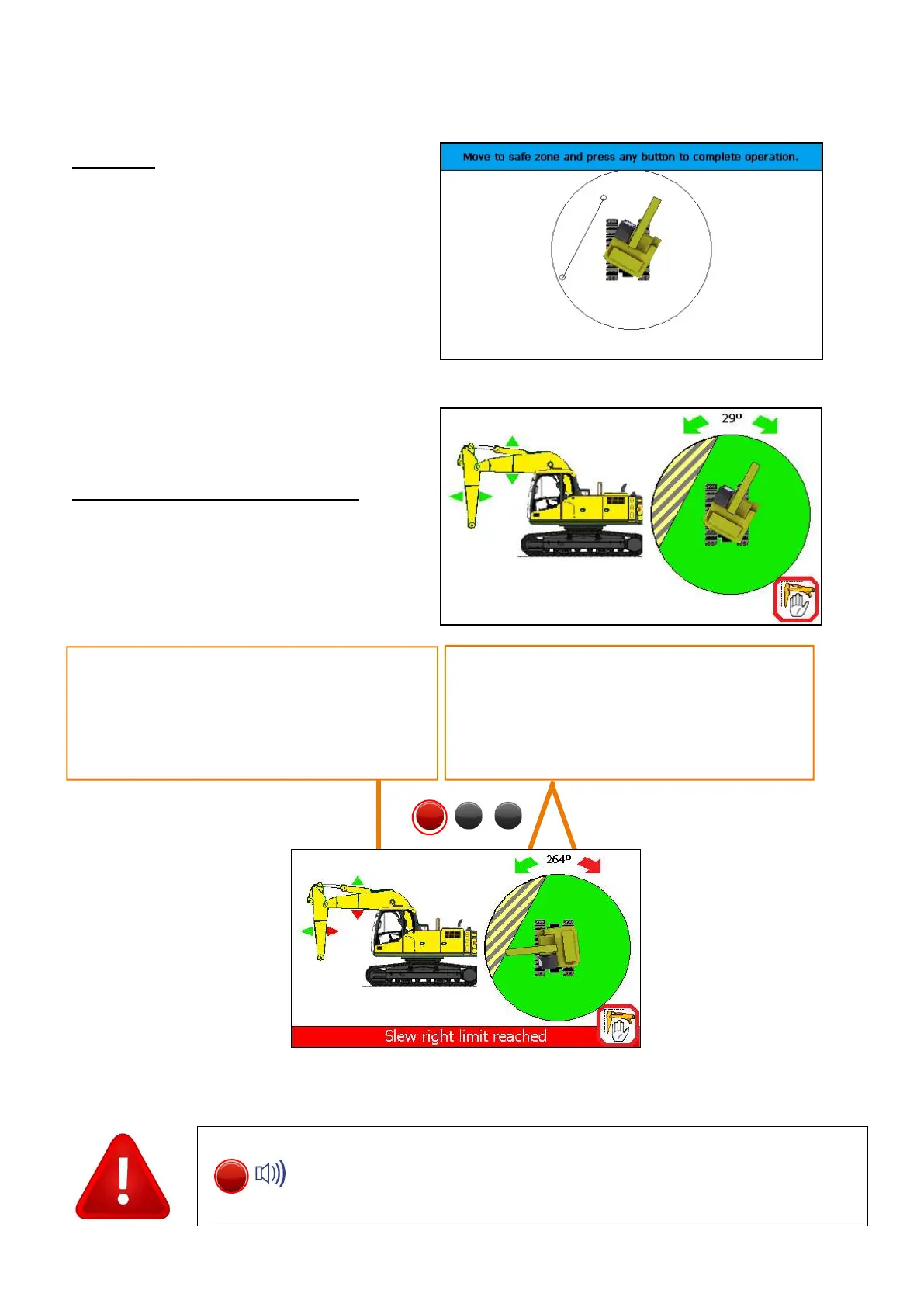

Step three
Move the equipment away from the limit
and press any button to complete.
The hatched hazard zone will be shown
on the main screen.
Check the limit is working as required.
Safe Directional Indicators. The triangles
indicate if it is safe GREEN, or unsafe RED to
movement a particular articulation.
PME 405 only: AMBER arrows indicate that
Safe Directional Indicators. The left and right
arrows indicate if it is safe GREEN, or unsafe
RED to slew in that direction.
PME 405 only: AMBER arrows indicate that
motion is slowed in that direction
