562400-000, Issue 1.3 January 2022
Page 39 of 61

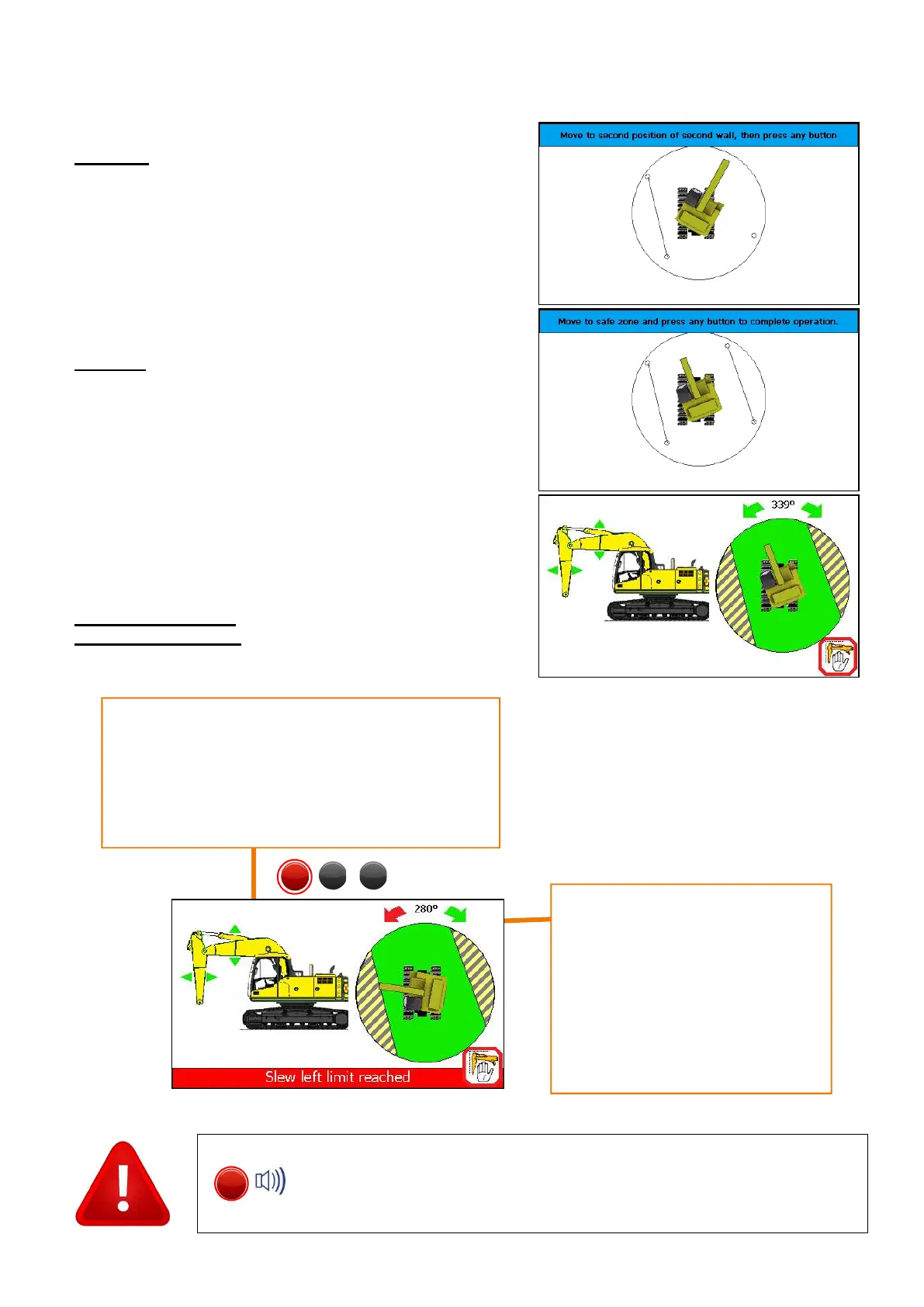

Step four
Move the dipper to the
other end of the SECOND
virtual wall, press any
button. A marker will be
placed here.
Step five
Move the equipment away
from the limit and press any
button to complete.
The hatched hazard zones
will be shown on the main
screen.
Check the limits are
working as required.
Once the limits are set, the internal alarm will sound and the RED LED
will light if the equipment reaches either limit. Always check that the
current limit activates at the set points. The restriction cannot be
deactivated if in the alarm state. Do not travel once a slew limit has
Observe the operational limitations given in section
Safe Directional Indicators. The triangles
indicate if it is safe GREEN, or unsafe RED to
movement a particular articulation.
PME 405 only: AMBER arrows indicate that
motion is slowed in that direction
Safe Directional Indicators. The
left and right arrows indicate if it
is safe GREEN, or unsafe RED
to slew in that direction.
PME 405 only: AMBER arrows
indicate that motion is slowed in
that direction
