USER’S MANUAL. PRODIG-5
11/2006 Page 17
English

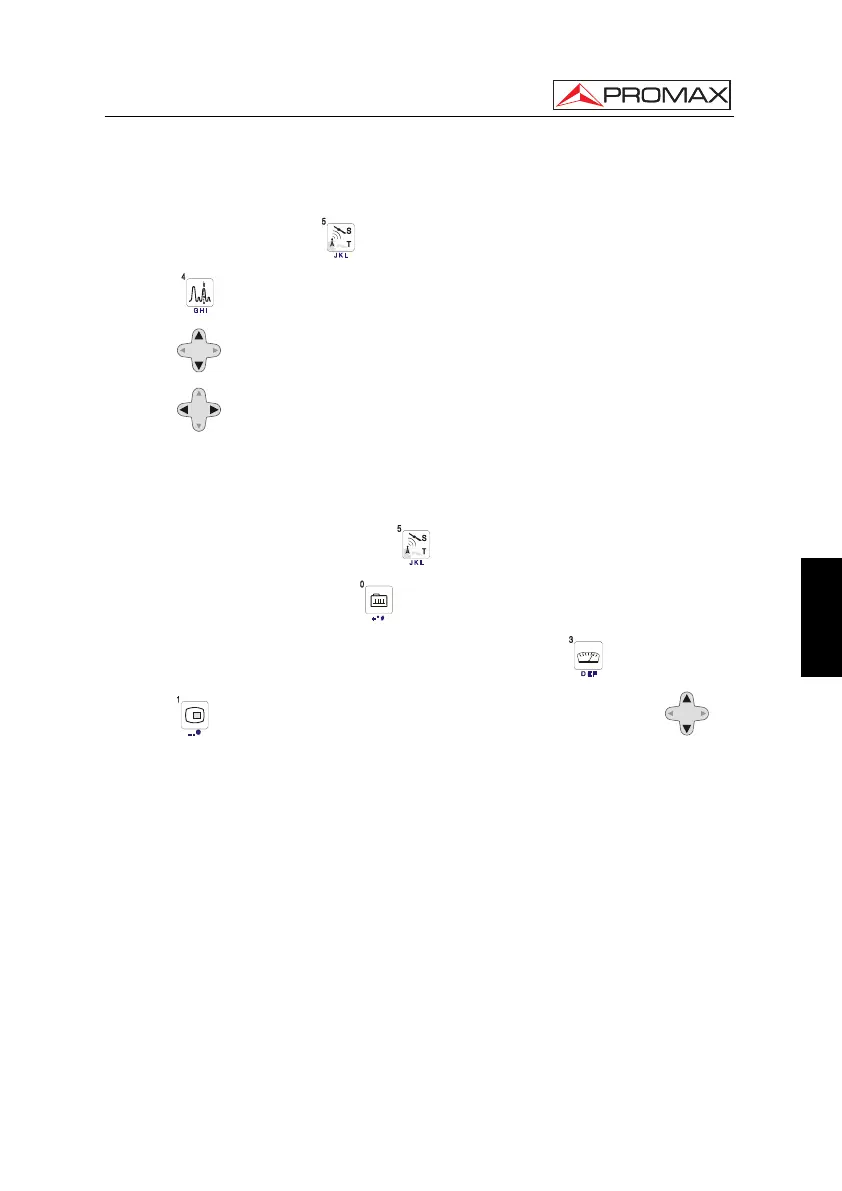

STEP 6.- Frequency spectrum monitoring
1. Select the frequency band to graph [14] (terrestrial or satellite).
2. Press [13] key to activate the signals sweeping.
3. Press [6] to modify the reference level in the vertical axis.
4. Press [6] to modify span in the horizontal axis.
STEP 7.- Video signal monitoring
1. Select the terrestrial frequency band [14].
2. Tune the channel or frequency [24] that is desired to visualize on screen.
3. Verify that the equipment receives an appropriate signal level [12].
4. Press [10] key to visualise the TV image, if the channel is digital press [6]
and place the cursor on the Service Identifier field and press the rotary selector [1]
to obtain the available list of services.
