3.2 Emergency Shut Down Procedure
The machine can be stopped instantly by depressing the EMERGENCY STOP button (or by
opening a guard door). The air supply will be isolated whilst any residual compressed air in the
system will be dumped causing the sealing tool to retract. Power to the control panel will be
isolated.
To restart the machine, ensure the front and back guards are closed and the emergency
stop button is not depressed, then press the RESET button.
3.3 Film Feed Loading
The GTR machine is fitted with a simple inverter driven film feed mechanism. The film will accept
a maximum of Ø250mm reel, with a maximum of 330mm width. (Note: wider film up to 350mm
can be accommodated. Consult Proseal for advice). The size of the core is irrelevant to the GTR
machine.
To load the film, carry out the following steps.
1. Break the seal on the reel of film.
2. Place the reel on top of the driven rollers 1 + 2
3. Align the film roll centrally on the driven rollers.
4. Move the reel collars in leaving approximately 1mm either side of the reel and tighten
the thumb screws.
5. Press the manual feed button until approximately 1.5m is fed out.

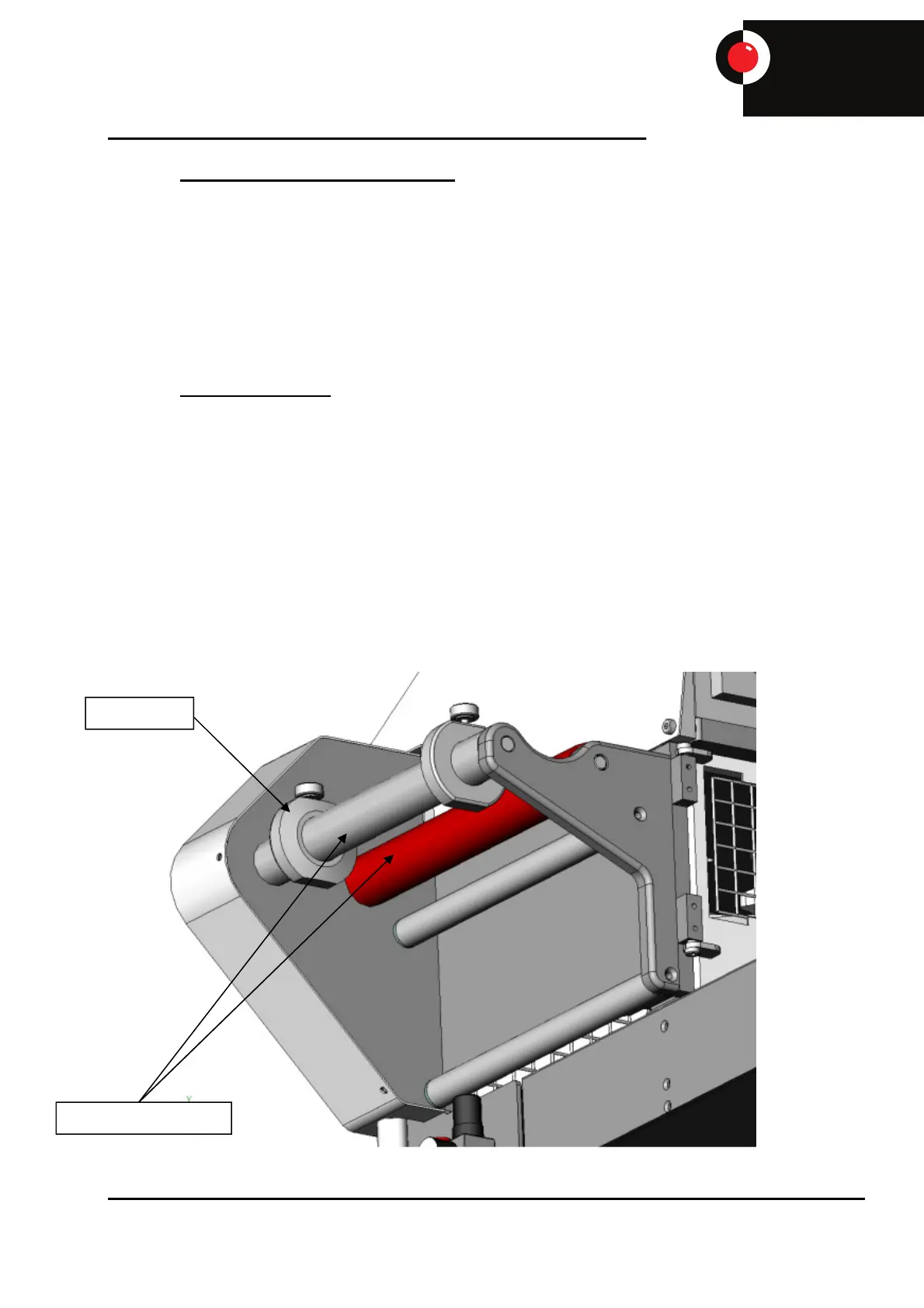

Reel Collar
Driven Rollers 1 & 2
