ProSoft Technology PLX3x Series

Using ProSoft Configuration Builder PLX3x Series ♦ Multi-Protocol Gateways
User Manual
Page 16 of 215 ProSoft Technology, Inc.
January 25, 2018

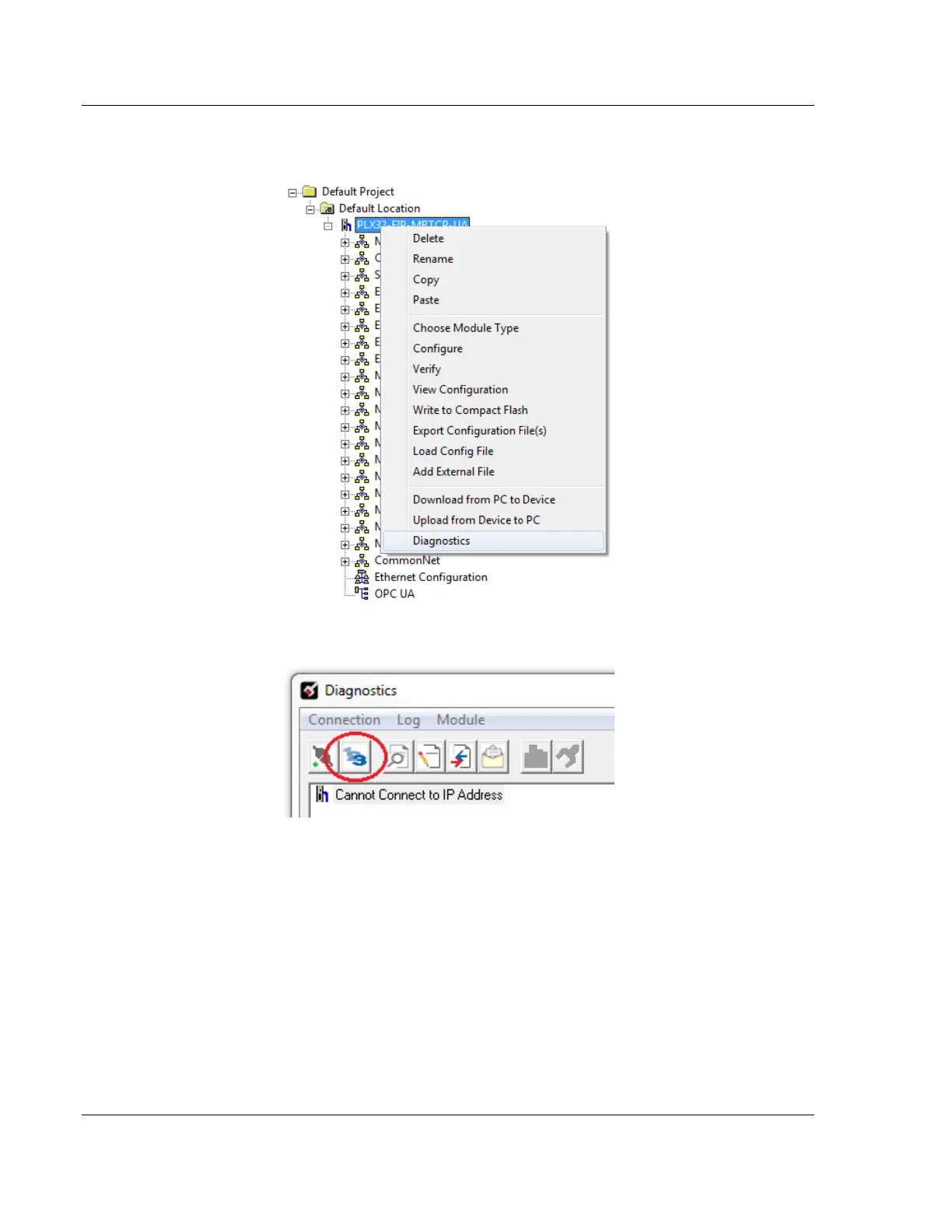

1 To open PDS, right-click on the gateway icon in PCB and click on
DIAGNOSTICS.
2 In the Diagnostics dialog box, click on the CONNECTION SETUP icon.
