ProSoft Technology PLX3x Series User Manual

PLX3x Series ♦ Multi-Protocol Gateways PND Protocol
User Manual
ProSoft Technology, Inc. Page 181 of 215
January 25, 2018
10 PND Protocol
In This Chapter
 PND Functional Overview ................................................................... 181
 PND Configuration .............................................................................. 183
 Step 7 Configuration ............................................................................ 188
 PND Diagnostics ................................................................................. 205
 PND Performance ............................................................................... 207

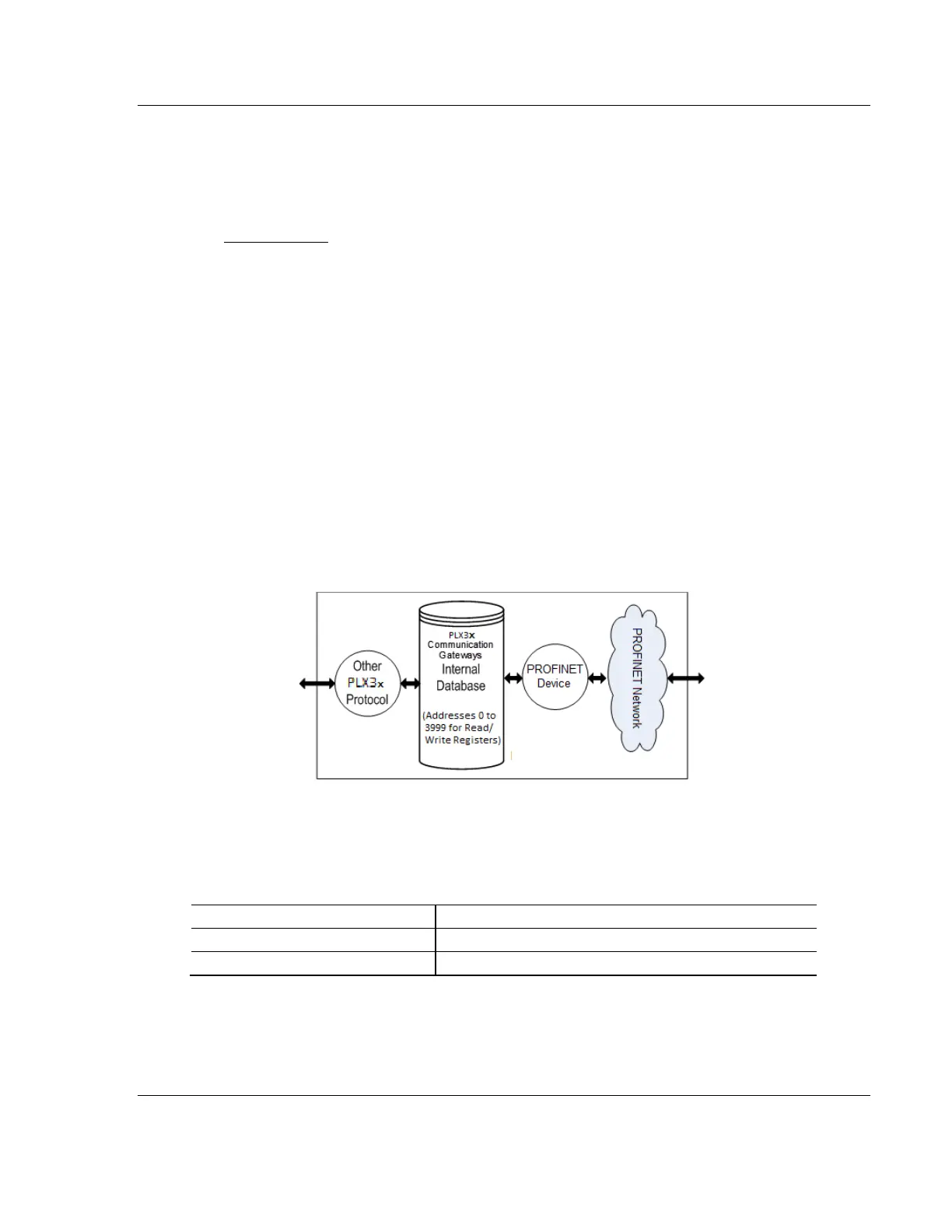

10.1 PND Functional Overview
PROFINET is the communication standard for automation of PROFIBUS and
PROFINET Intenational (PI). Many years of experience with PROFIBUS and the
widespread use of Industrial Ethernet are all rolled into PROFINET.
With its integrated, Ethernet-based communication, PROFINET satisfies a wide
range of requirements, from data intensive parameter assignments to extremely
fast I/O data transmission which enables automation in real-time.
10.1.1 PND General Specifications
Driver Type
Class A Device
PROFINET I/O Data
1440 bytes IN, 1440 bytes OUT
Exchange Types
Cyclic Real-time (RT) and Acyclic Data
