Forward Open Response Error Codes
Error (Int)
Error (Hex)
Description
-55
0xFFC9
Message length received not valid
-56
0xFFC8
Status error reported
PCCC Response Error Codes
Error (Int)
Error (Hex)
Description
-61
0xFFC3
Message length received not valid
-62
0xFFC2
Status error reported
-63
0xFFC1
CPF bad command code
-64
0xFFC0
TNS in PCCC message not matched
-65
0xFFBF
Vendor ID in PCCC message not matched
-66
0xFFBE
Serial number in PCCC message not matched
5.4 EIP Reference
5.4.1 SLC and MicroLogix Specifics
Messaging from a SLC 5/05
The PLX3x gateway can receive messages from a SLC 5/05 containing an
Ethernet interface. The gateway supports both read and write commands.
SLC5/05 Write Commands

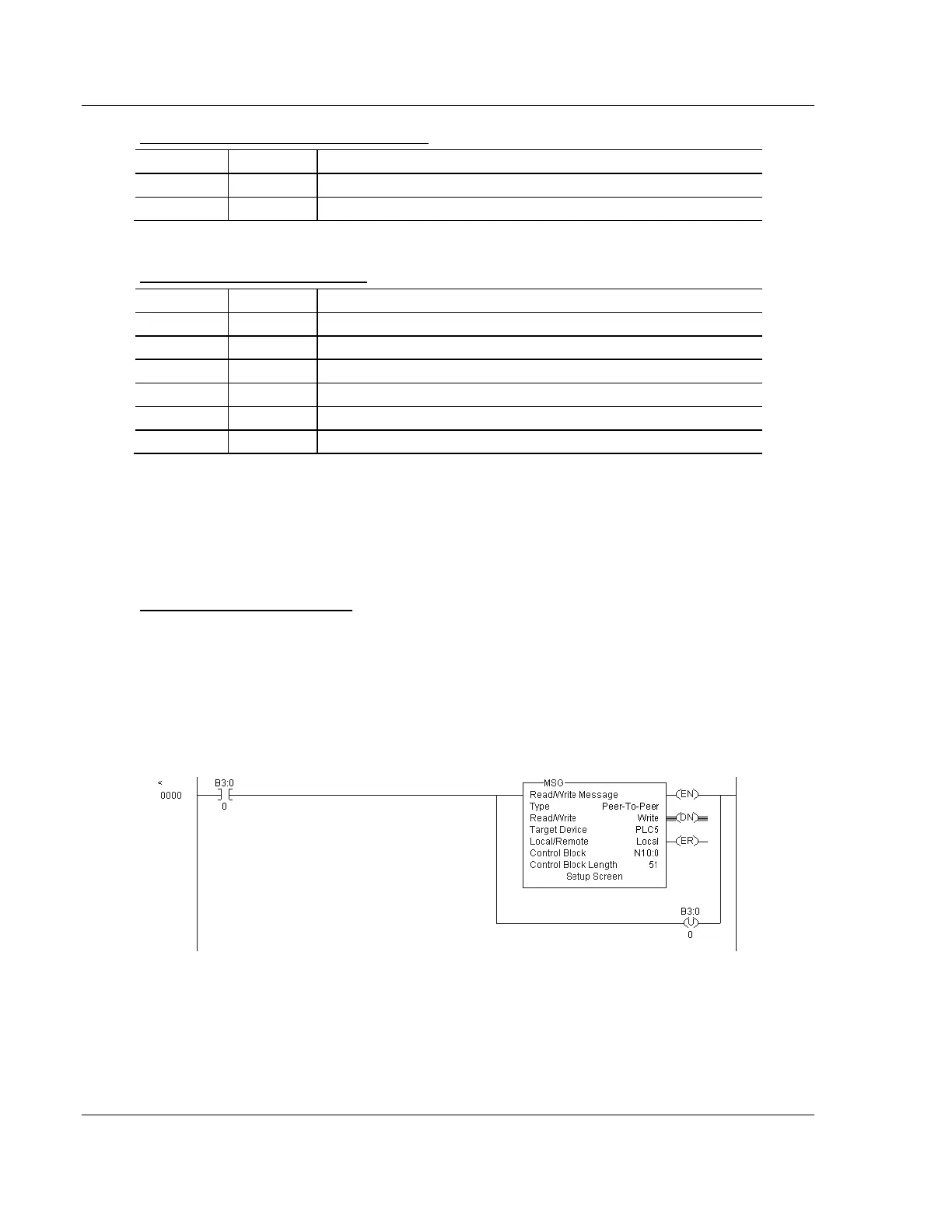

Write commands transfer data from the SLC processor to the gateway. The
following diagram shows an example rung to execute a write command.
1 Set the READ/WRITE parameter to WRITE. The gateway supports a TARGET
DEVICE parameter value of 500CPU or PLC5.
