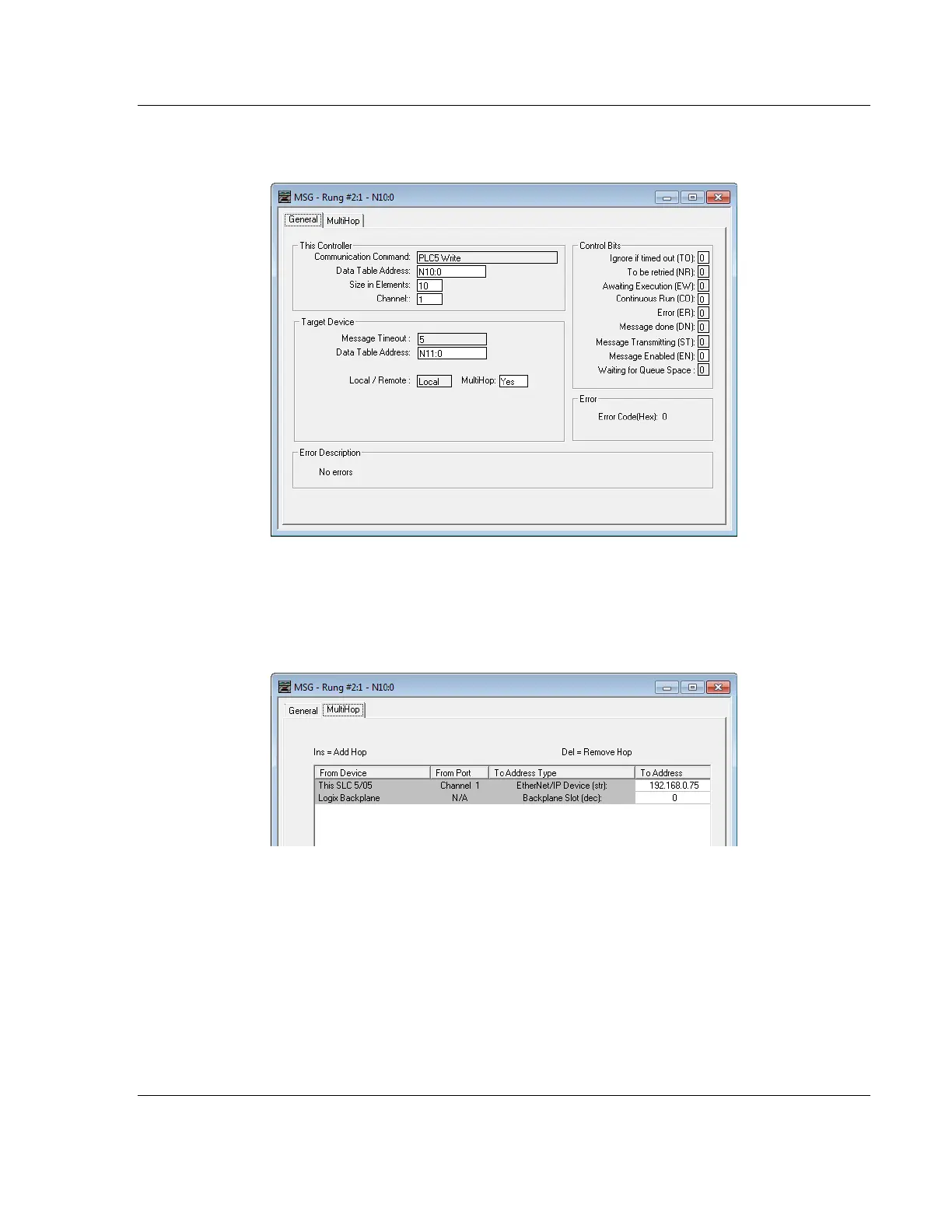

2 In the MSG object, click SETUP SCREEN in the MSG object to complete the
configuration of the MSG instruction. This displays the following dialog box.
3 Set the TARGET DEVICE DATA TABLE ADDRESS to a valid file element (such as,
N11:0) for SLC and PLC5 messages.
4 Set the MULTIHOP option to YES.
5 Complete the MULTIHOP tab portion of the dialog box shown in the following
image.
6 Set the TO ADDRESS value to the gateway’s Ethernet IP address.
7 Press the INS key to add the second line for ControlLogix Backplane and set
the slot number to zero.
