EIP Protocol PLX3x Series ♦ Multi-Protocol Gateways
User Manual
Page 56 of 215 ProSoft Technology, Inc.
January 25, 2018
5.2.2 Configuring EIP Class 1 Connection
Use the EIP Class 1 Connection in ProSoft Configuration Builder when the
gateway acts as an EIP adapter transferring data to and from a PLC (the EIP
scanner) using a direct I/O connection. Direct I/O connections can transfer large
amounts of data quickly.
The PLX3x EIP gateway can handle up to eight I/O connections (depending on
the model), each with 248 words of input data and 248 words of output data.
Adding the Gateway to RSLogix5000 v.20

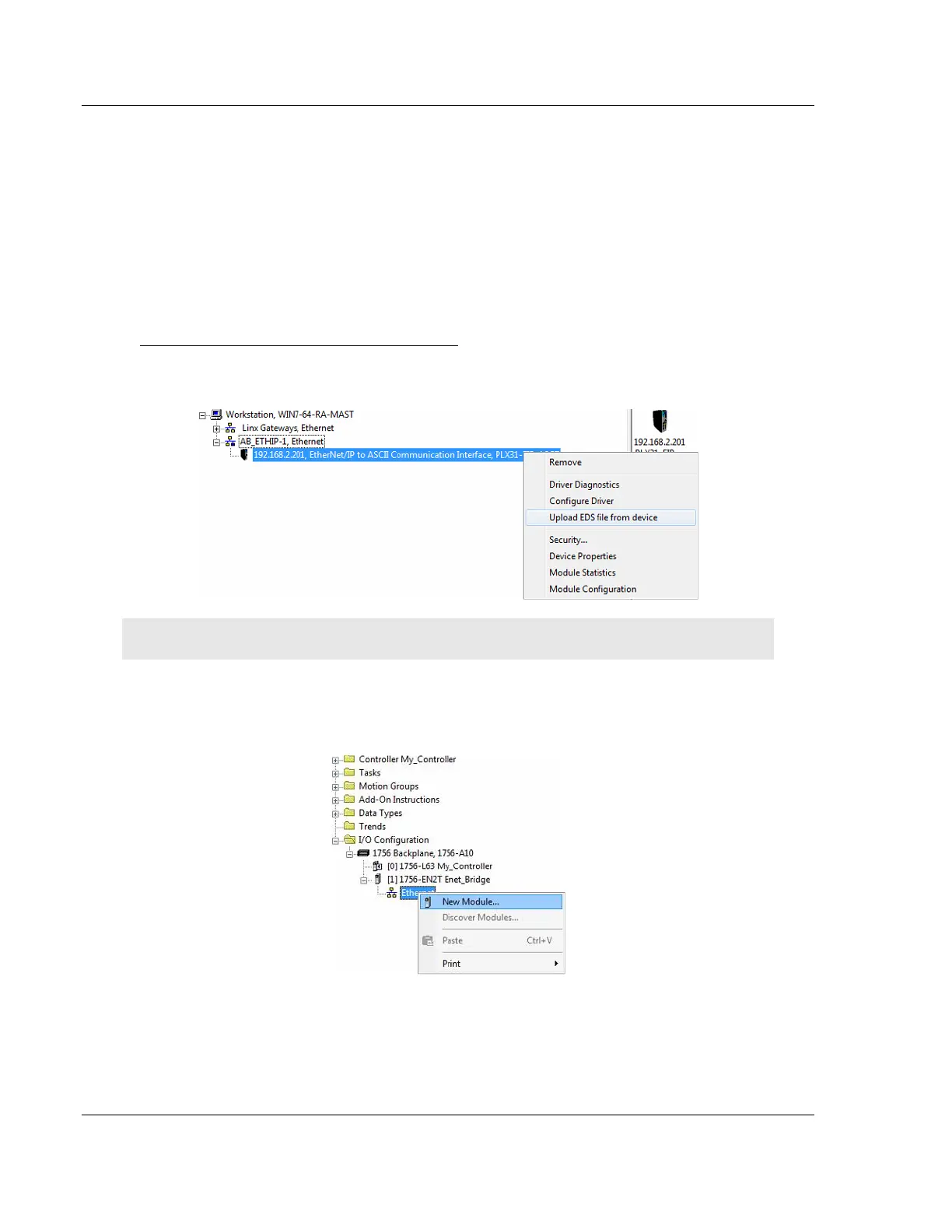

1 Start Rockwell Automation RSLinx and browse to the PLX3x gateway.
2 Right-click the gateway and then choose UPLOAD EDS FROM DEVICE.
Note: RSLogix5000 may need to be restarted in order to complete the EDS installation.
3 After you restart RSLogix 5000, open the desired RSLogix 5000 project.
4 In the Controller Organizer, right-click the EtherNet/IP bridge in the I/O tree
and choose NEW MODULE.
5 In the Select Module Type dialog box, in the Enter search text box, type
PLX3.
