PLX3x Series ♦ Multi-Protocol Gateways Using ProSoft Configuration Builder
User Manual
ProSoft Technology, Inc. Page 29 of 215
January 25, 2018
2.9 Uploading the Project from the Gateway
Note: For instructions on connecting to the module with your PC, see Connecting the PC to the
Gateway (page 15).
You can upload the project settings from the PLX3x gateway into the current
project in ProSoft Configuration Builder on your PC.
1 In the tree view in ProSoft Configuration Builder, right-click the PLX3X
GATEWAY icon and then choose UPLOAD FROM DEVICE TO PC. This opens the
Upload dialog box.

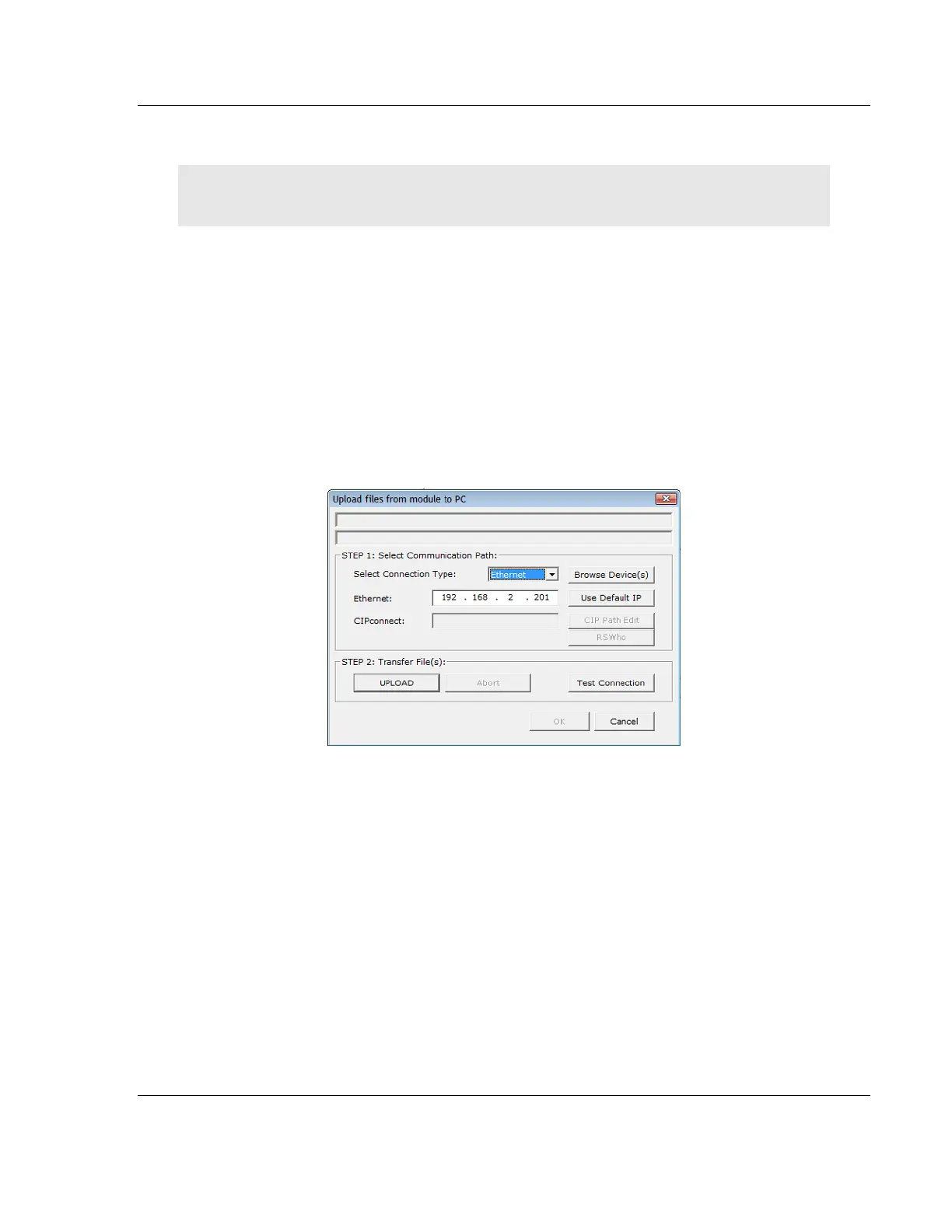

2 In the Upload dialog box, in the Select Connection Type dropdown box, use
the default ETHERNET setting.
Note: If you connected to the module using a temporary IP address, the
Ethernet address field contains that temporary IP address. ProSoft
Configuration Builder uses this temporary IP address to connect to the
module.
3 Click TEST CONNECTION to verify that the IP address allows access to the
module.
4 If the connection succeeds, click UPLOAD to transfer the Ethernet
configuration to the PC.
