PLX3x Series ♦ Multi-Protocol Gateways Diagnostics and Troubleshooting
User Manual
ProSoft Technology, Inc. Page 39 of 215
January 25, 2018

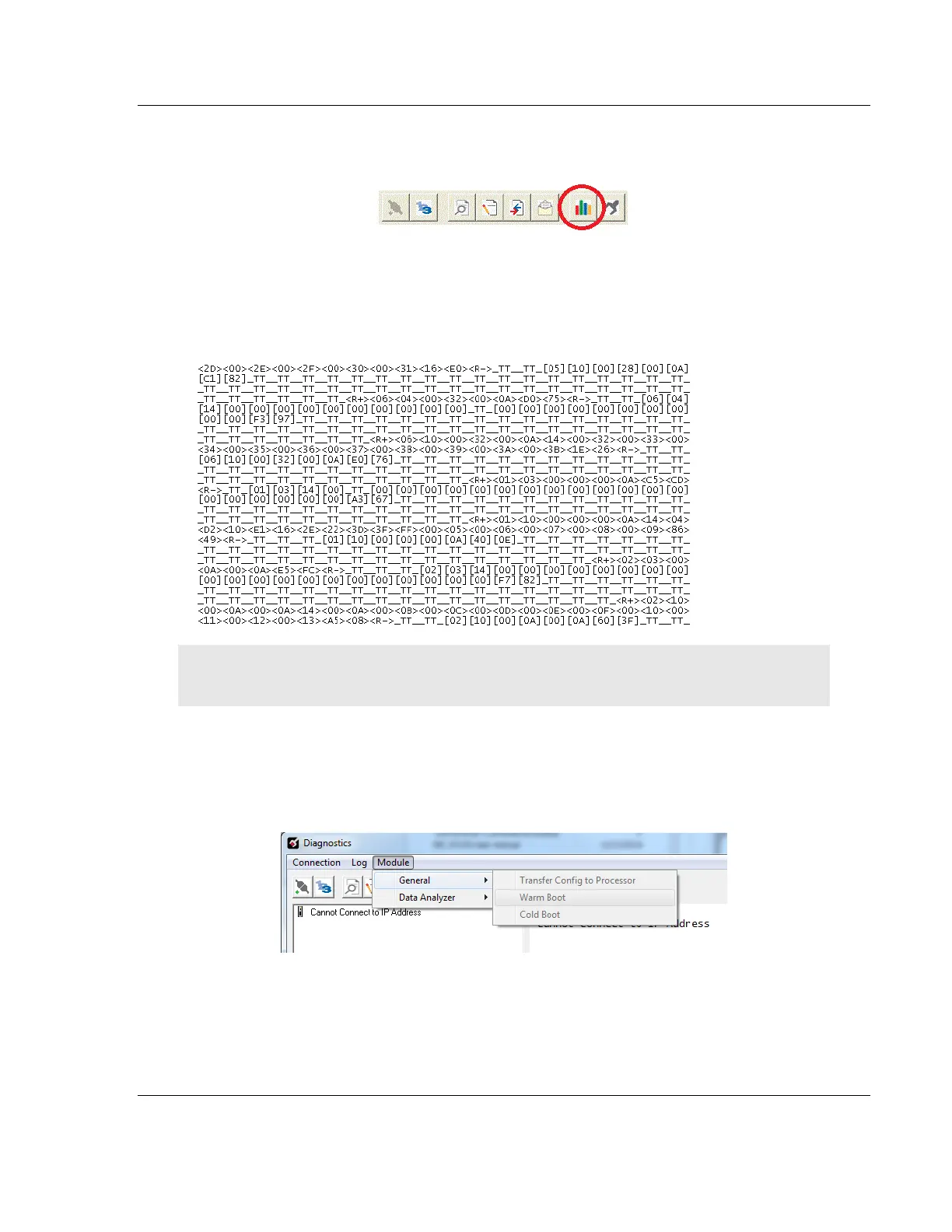

5 From the toolbar, click the START DATA ANALYZER button to start the Data
Analyzer. Click the button again to stop it.
The example below is part of a capture of standard Modbus data packets,
displayed in hexadecimal number format.
Data LEAVING the serial port is enclosed in angle brackets <>.
Data ENTERING the port is enclosed in square brackets [ ].
Each set of brackets holds one word (2 bytes) of data.
For Modbus protocol users: To interpret the data packets, refer to the Modbus Protocol
Specification. See About the Modbus Protocol (page 112) or visit www.modbus.org.
3.2.4 Warm Boot / Cold Boot
Warm and Cold booting the PLX3x gateway can be done by clicking MODULE >
GENERAL > WARM BOOT or COLD BOOT.
